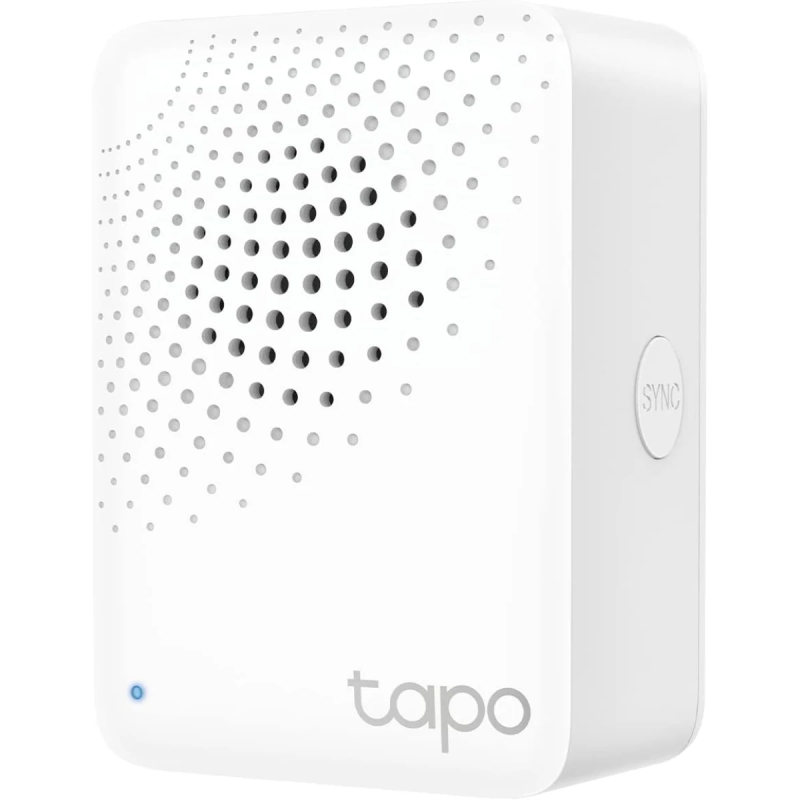

TP-Link Tapo H100 — Smart IoT Hub with Chime

The Tapo H100 is a compact smart hub that connects and coordinates your Tapo ecosystem—sensors, buttons, and other low-power accessories—over a long-range sub-1 GHz link, while using 2.4 GHz Wi-Fi to reach your home network and the Tapo app. It also includes a built-in chime/siren so it can double as a doorbell chime or audible alarm for automations and security alerts.

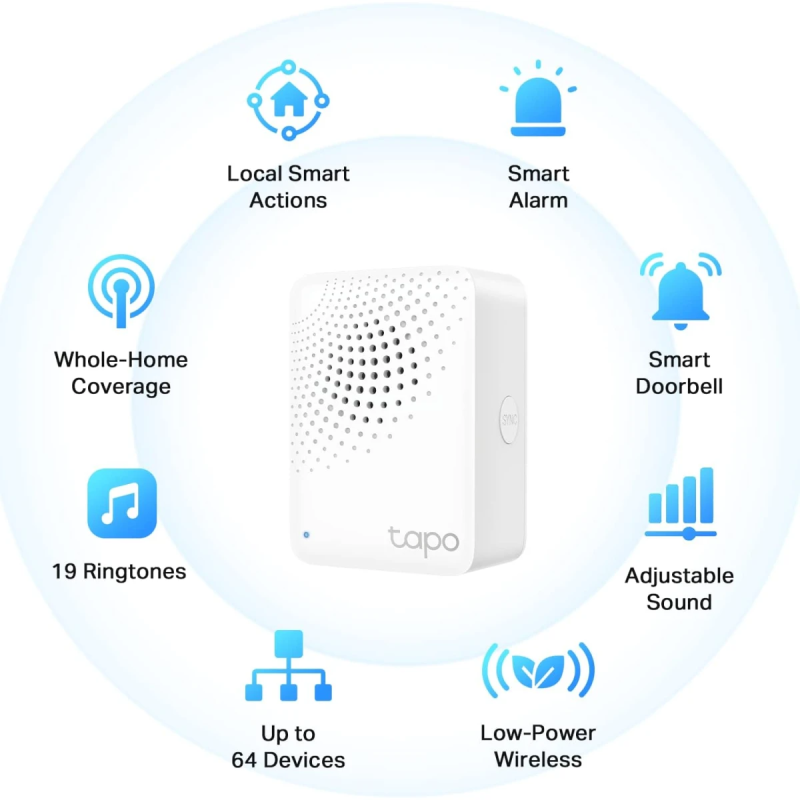

Key Features

• Central hub for Tapo accessories — Pair motion, door/window, leak, temperature/humidity sensors and smart buttons.
• Built-in chime & siren — 19 selectable ringtones; up to ~90 dB audible alerts for alarms, doorbells, and automations.
• Local automations — Fast, reliable routines between the hub and sub-devices; many actions continue even if the internet is offline.
• Protection Modes — Arm/disarm sets of sensors with modes like Home, Away, Sleep, and Off.
• Long-range, low-power link — Sub-1 GHz wireless (region-dependent) extends accessory battery life and coverage.
• Supports up to 64 sub-devices per hub (actual capacity can vary with environment and device mix).
• Easy setup with Tapo app — Guided onboarding, firmware updates, family sharing, and Smart Actions.

How It Works

Tapo sensors and buttons connect to the H100 over a low-power sub-1 GHz link (e.g., 868 MHz/922 MHz by region). The hub connects to your router via 2.4 GHz Wi-Fi and to the Tapo cloud/app. When a sensor triggers, the H100 can play a chime/siren, notify your phone, and run automations (e.g., turn on lights, toggle plugs).

Popular Automations

• Doorbell: Tapo Smart Button → H100 plays doorbell chime.
• Entry alert: Door/Window Sensor opens → Chime or siren + phone notification.
• Night path lighting: Motion after sunset → Turn on hallway light, then off after a delay.
• Leak warning: Water Leak Sensor triggers → Loud siren + push alert.
• Comfort alert: Temp/Humidity threshold exceeded → Notification (and optionally trigger fan/plug).

Technical Specifications

Compatibility

Designed for Tapo sub-1 GHz accessories, including:

• Motion sensors (e.g., hallway/security use)
• Door/Window (contact) sensors
• Water leak sensors
• Temperature & humidity sensors
• Smart buttons (doorbell, scene trigger)

Note: Tapo Wi-Fi products (smart plugs/lights) pair directly to Wi-Fi and the Tapo app; they can still participate in automations that the H100 coordinates, but they do not join the hub’s sub-1 GHz network.

Setup (Quick Start)

1. Plug the H100 into a power outlet near your router.
2. Install/open the Tapo app and tap Add Device → Hubs → Tapo H100.
3. Follow the in-app steps to connect the hub to your 2.4 GHz Wi-Fi.
4. Pair Tapo sensors/buttons to the hub and assign rooms/names.
5. Create Smart Actions (automations) and choose chime/siren sounds and volumes.

What’s in the Box

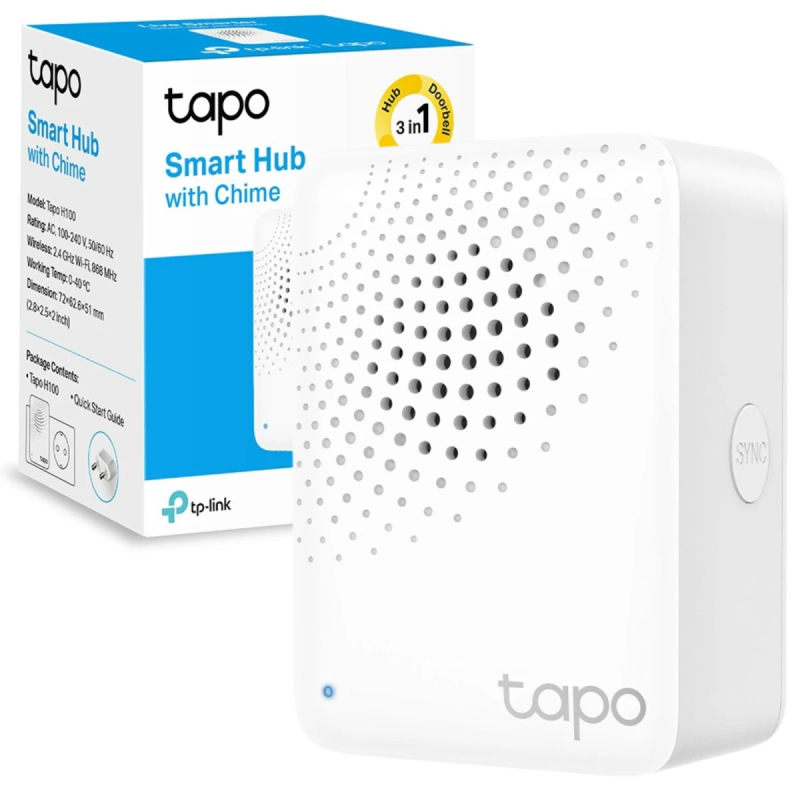

• Tapo H100 Smart IoT Hub with Chime
• Quick Start Guide & Safety information

Use Cases

• Doorbell chime for homes or small offices using a Tapo Smart Button at the door.
• Entry/Intrusion alerts with door/window sensors and a loud, built-in siren.
• Water-leak protection with instant audible warnings and phone notifications.
• Comfort monitoring using temperature/humidity sensors to notify or trigger fans/plugs.

Important Notes

• Region & Frequency: Buy hub and sub-devices for the same region so their sub-1 GHz frequencies match.
• Capacity & Range: Up to 64 sub-devices is a guideline; performance depends on layout, walls, and interference.
• Power & Internet: Local automations can continue if the internet is down, but remote control/notifications require connectivity.

Warranty & Support

Warranty terms vary by region. Firmware updates and FAQs are available in the Tapo app and TP-Link support pages.
