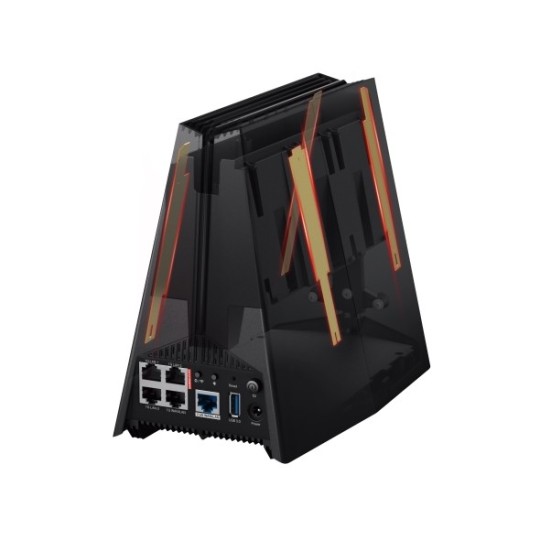

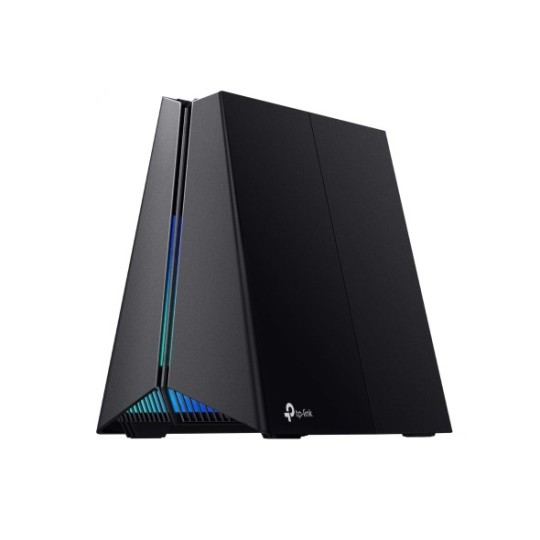

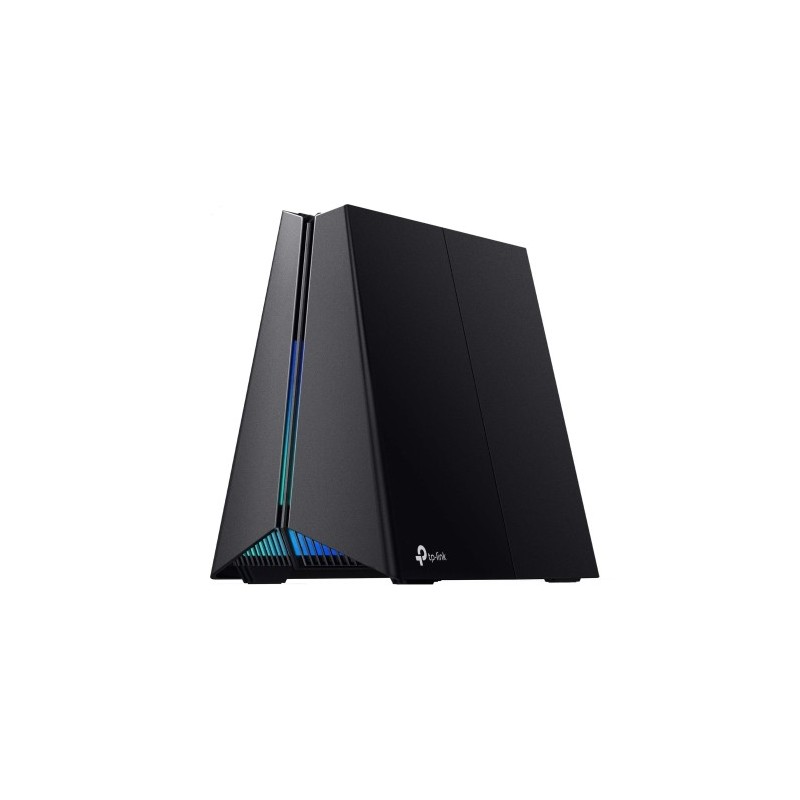

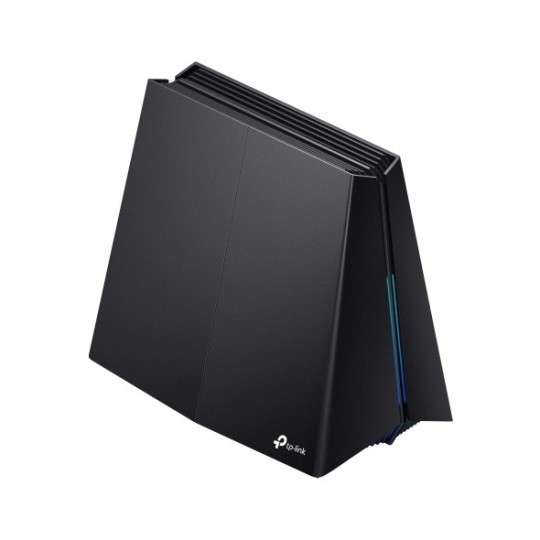

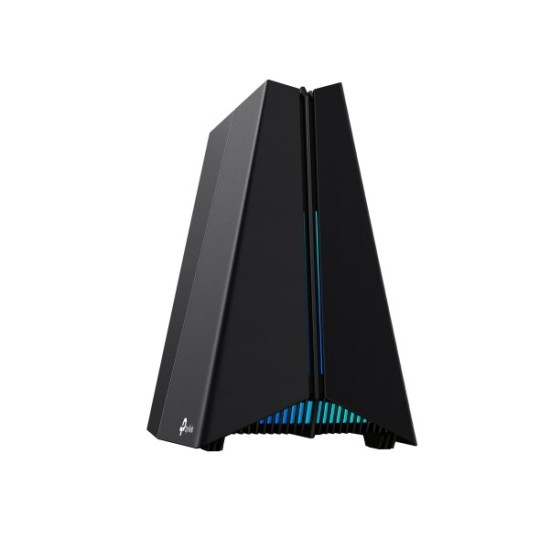

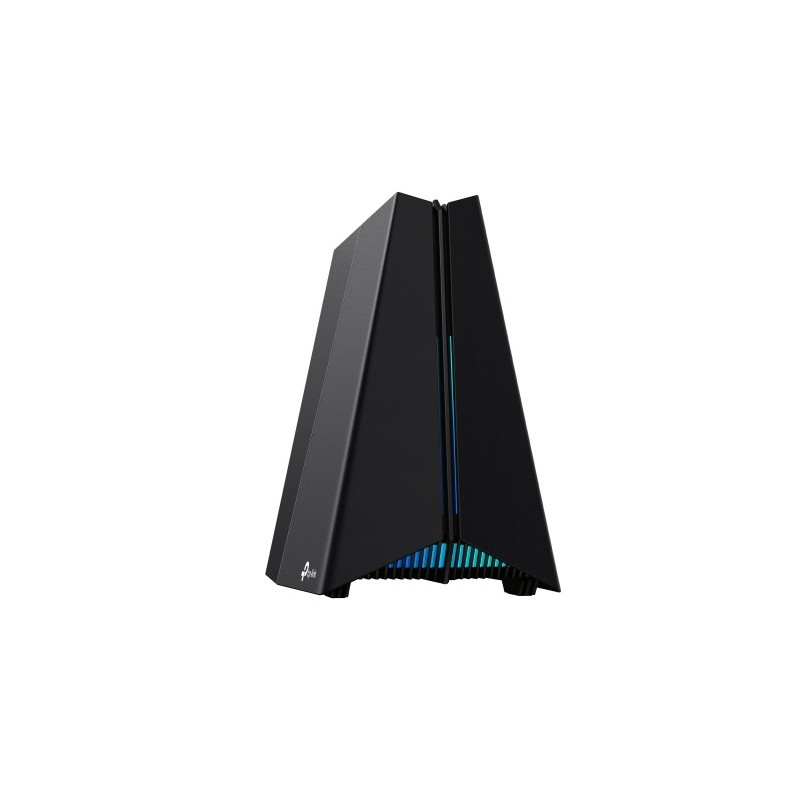

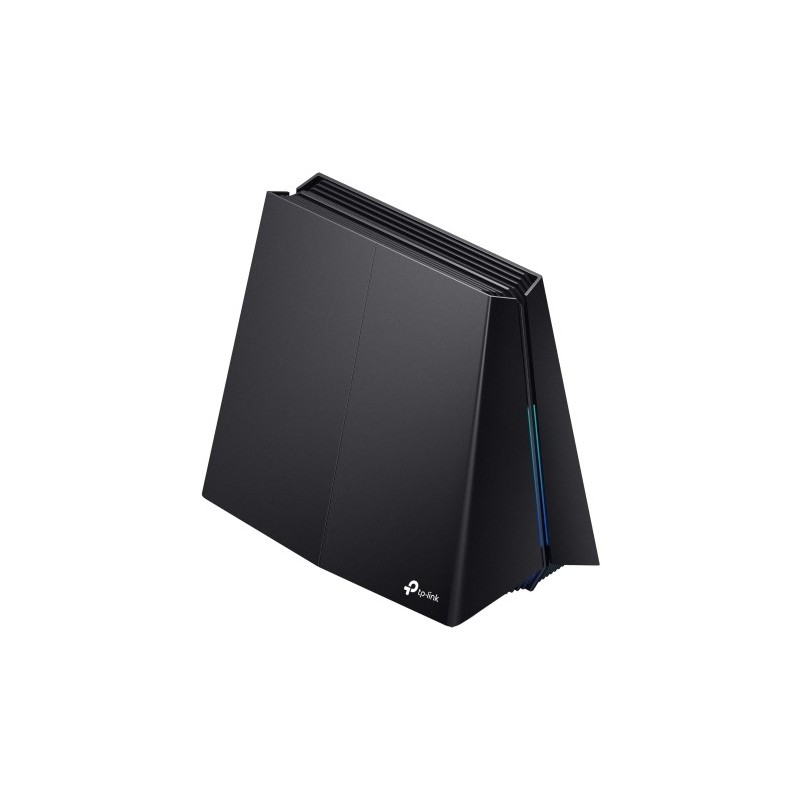

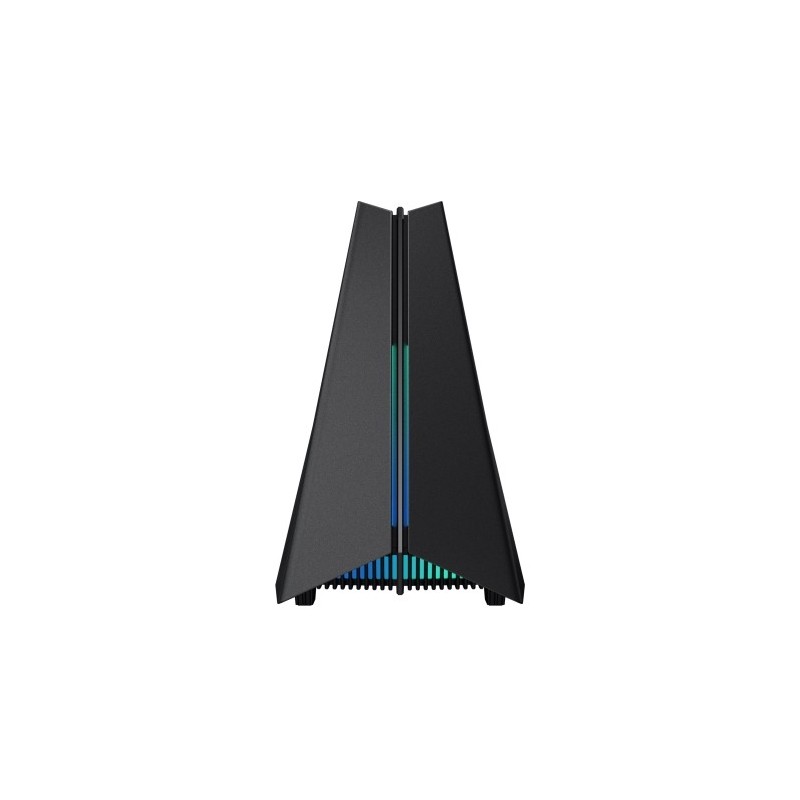

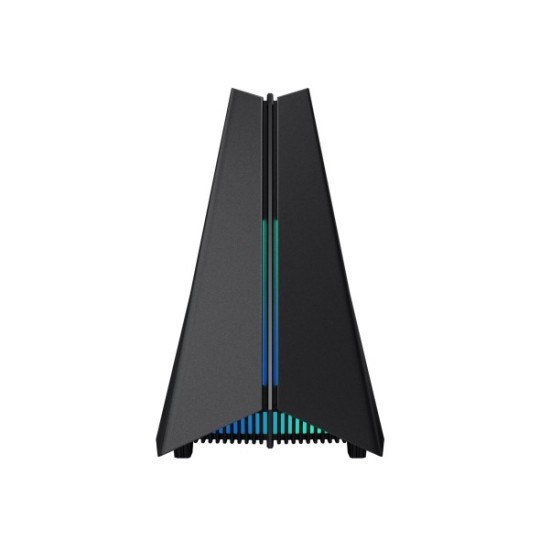

TP-LINK Archer GXE75 AXE5400 Tri-Band Wi-Fi 6E Gaming Router

Category: Gaming Wi-Fi Router • Model: Archer GXE75 • Wi-Fi Standard: Wi-Fi 6E (802.11ax)

The Archer GXE75 is a tri-band Wi-Fi 6E gaming router designed for high throughput, ultra-low latency, and rock-solid stability. It delivers up to AXE5400 combined wireless speeds across 2.4 GHz, 5 GHz, and the new 6 GHz band, with gaming-focused QoS, a dedicated gaming port, and an intuitive game dashboard. EasyMesh support lets you expand coverage seamlessly, while TP-Link HomeShield adds advanced security and parental controls.

Key Features

• Tri-Band Wi-Fi 6E: 2.4 GHz + 5 GHz + 6 GHz for more capacity, less congestion, and higher peak speeds.
• AXE5400 Speed Ratings: up to 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz) + 2402 Mbps (6 GHz).
• Gaming Optimizations: game traffic detection & acceleration, device/app prioritization, dedicated gaming port, and real-time game panel.
• Multi-Gig Ready: 1× 2.5 Gbps WAN/LAN port to unlock multi-gig internet or high-speed local networking.
• Wi-Fi Efficiency: OFDMA, MU-MIMO, Beamforming, 160 MHz channel support, and 1024/4K-QAM (where supported) for dense device environments.
• HomeShield Security: network protection, IoT shielding, malicious site blocking, DDoS protection, advanced parental controls (some features may require subscription).
• VPN Flexibility: VPN Server & Client modes including OpenVPN, L2TP, PPTP, and WireGuard.
• EasyMesh Compatible: build a whole-home mesh with compatible TP-Link routers/extenders under one SSID.
• Management Made Easy: TP-Link Tether app (iOS/Android) & web UI, TP-Link ID cloud management, automatic firmware updates.
• Design & Aesthetics: compact chassis with integrated antennas, efficient cooling, and customizable RGB lighting effects.

Technical Specifications

Wireless

• Standards: IEEE 802.11ax (backwards compatible with 802.11a/b/g/n/ac)
• Bands: 2.4 GHz, 5 GHz, 6 GHz (Wi-Fi 6E)
• Max Link Rates (theoretical):
  • 2.4 GHz: up to 574 Mbps
  • 5 GHz: up to 2402 Mbps
  • 6 GHz: up to 2402 Mbps
• Channel Width: up to 160 MHz (5/6 GHz)
• Modulation: up to 1024/4K-QAM (device & region dependent)
• Technologies: OFDMA, MU-MIMO, Beamforming, Airtime Fairness, DFS
• Security: WPA, WPA2, WPA3; WPA/WPA2-Enterprise (802.1X)
• Guest Networks: 3 (one per band)
• Antennas: High-gain internal antenna array (optimized placement)

Processor & Software

• CPU: High-performance quad-core SoC (optimized for low-latency networking)
• QoS: Gaming acceleration, application/device priority, bandwidth allocation
• Parental Controls: Profiles, schedules, content filtering (via HomeShield)
• VPN: OpenVPN / L2TP / PPTP / WireGuard (Server & Client)
• Operating Modes: Router Mode, Access Point Mode
• WAN Types: Dynamic IP, Static IP, PPPoE, L2TP, PPTP
• Services: TP-Link DDNS, NO-IP, DynDNS; UPnP, NAT-forwarding (Port Forward/Trigger), DMZ
• Management: Web UI, TP-Link Tether app, TP-Link ID remote management, auto firmware updates, logs

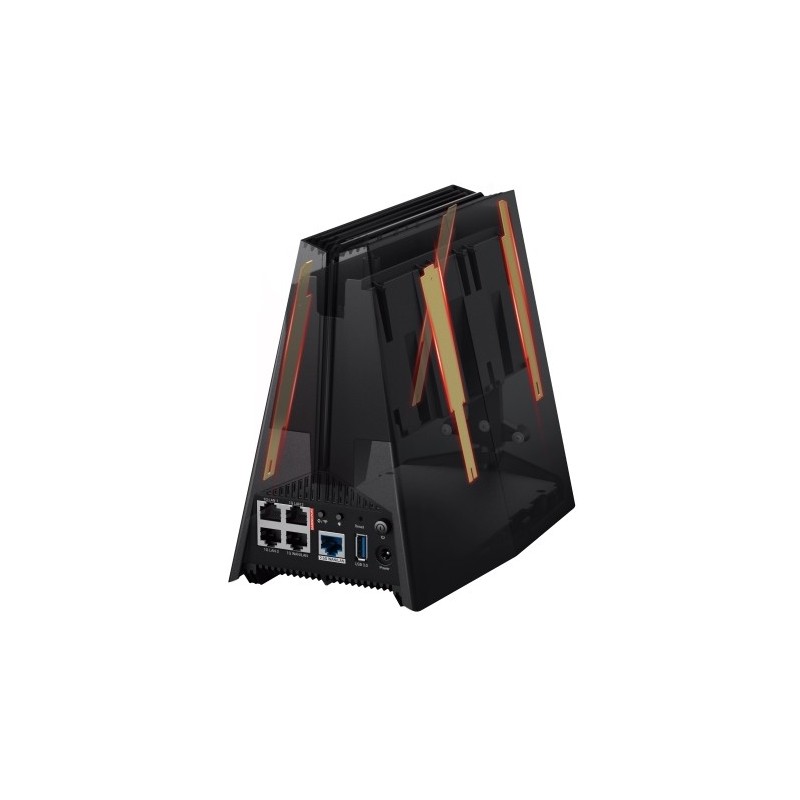

Ports & Interfaces

• Ethernet:
  • 1 × 2.5 Gbps WAN/LAN (auto-sensing)
  • 1 × 1 Gbps WAN/LAN (auto-sensing)
  • 3 × 1 Gbps LAN
• USB: 1 × USB 3.0 (USB-A) — file/media sharing (Samba/FTP), media server
• Buttons: Power, Reset (pinhole), WPS/Wi-Fi
• LEDs: System status & customizable RGB lighting

Mesh & Expansion

• EasyMesh: Works with EasyMesh-compatible TP-Link routers/extenders for unified whole-home coverage

Power & Environmental

• Power Input: External power adapter
• Certifications: CE/FCC (region dependent)
• Operating Temperature/Humidity: Typical consumer-router ranges

Physical

• Form Factor: Desktop router with bottom ventilation & elevated stand for airflow
• Color: Black with RGB lighting accents

Gaming-Focused Capabilities

• Gaming Port: Prioritized wired LAN port for consoles/PCs.
• Game Acceleration: Automatically detects popular game traffic and prioritizes packets to reduce latency/jitter.
• Game Dashboard: Live network stats, device monitoring, and easy one-tap acceleration.
• RGB Lighting: Customizable effects to match your setup.

What’s in the Box

• Archer GXE75 Wi-Fi 6E Gaming Router
• Power Adapter
• RJ-45 Ethernet Cable
• Quick Installation Guide

Compatibility & Requirements

• Works with all major ISPs (may require modem for cable/DSL/fiber setups).
• Best performance with Wi-Fi 6/6E client devices; backward compatible with older Wi-Fi standards.
• TP-Link Tether app for iOS/Android (optional for setup & management).

Ideal For

• Gamers seeking low-latency, prioritized traffic for PCs/consoles.
• Homes with many devices needing more capacity and the clean 6 GHz band.
• Gigabit or multi-gig internet plans leveraging the 2.5 Gbps port.
• Expandable whole-home coverage with EasyMesh.

At a Glance (Specs Table)

Notes: Maximum wireless rates are theoretical and depend on client capabilities, environment, and regional regulations. Some HomeShield features may require a paid subscription. Feature availability (e.g., DFS, 160 MHz, VPN options) can vary by region/firmware.
