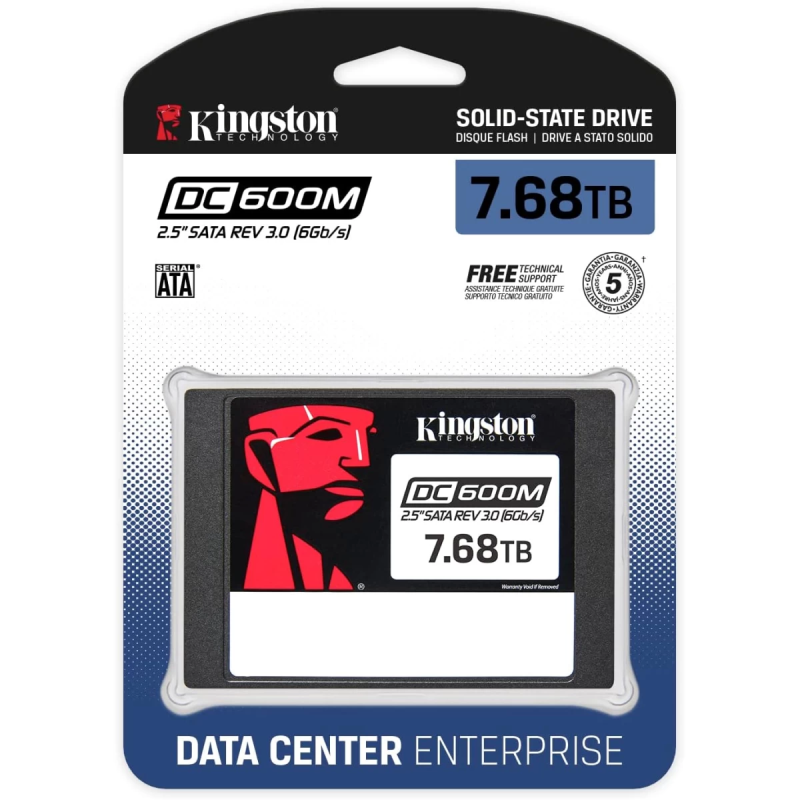

The Kingston DC600M 7.68TB SATA SSD is a high-capacity, enterprise-class solid-state drive built for data centers and servers requiring exceptional performance, reliability, and endurance. Optimized for mixed-use workloads, it delivers consistent throughput and low-latency operation for virtualization, cloud computing, web hosting, and database management.
Featuring advanced 3D TLC NAND and a robust architecture tuned for Quality of Service (QoS), the DC600M provides predictable I/O performance across varying workloads. With read speeds up to 560MB/s and write speeds up to 530MB/s*, it ensures reliable and efficient data handling for demanding enterprise applications running 24/7.
Built with enterprise-grade protection features, including Power Loss Protection (PLP), end-to-end data path protection, and 256-bit AES hardware encryption, the DC600M safeguards data integrity at every level. Combined with its 1.6 DWPD endurance rating and 2 million hours MTBF, it delivers the long-term stability and performance required in mission-critical server environments.
Main Features
- Massive 7.68TB Capacity: Ideal for enterprise storage, virtualization, and large-scale databases.
- Enterprise-Class Reliability: Designed for continuous 24/7 operation in demanding data center environments.
- Optimized for Mixed Workloads: Delivers consistent performance for both read- and write-intensive applications.
- High-Speed Data Processing: Up to 560MB/s read and 530MB/s write speeds for exceptional efficiency.
- Power Loss Protection (PLP): Prevents data loss during sudden power outages.
- Secure Data Management: Includes 256-bit AES hardware encryption, TCG Opal 2.0, and end-to-end data protection.
- Exceptional Endurance: Rated for up to 1.6 DWPD over 5 years of constant operation.
- Easy Integration: 2.5-inch 7mm SATA form factor fits most server bays and storage arrays.
Specifications
- Model: SEDC600M/7680G
- Form Factor: 2.5 inch
- Interface: SATA Rev. 3.0 (6Gb/s) – backward compatible with SATA Rev. 2.0
- Capacity: 7.68TB
- NAND Type: 3D TLC NAND
- Sequential Read Speed: Up to 560MB/s*
- Sequential Write Speed: Up to 530MB/s*
- Random 4K Read/Write: Up to 94,000 / 75,000 IOPS
- Endurance (DWPD): Up to 1.6 DWPD for 5 years
- Features: Power Loss Protection (PLP), End-to-End Data Path Protection, AES 256-bit Encryption, TCG Opal 2.0
- Dimensions: 100.0mm x 69.9mm x 7.0mm
- Weight: 92.34g
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
- Vibration Operating: 2.17G (7–800Hz)
- Vibration Non-Operating: 20G (20–1000Hz)
- MTBF: 2 million hours
- Warranty: 5-year limited warranty with enterprise technical support
Package Includes
- 1 × Kingston DC600M 7.68TB Enterprise-Class 2.5" SATA SSD
- 1 × Quick Installation Guide
- Warranty & Support Information
*Performance may vary based on system hardware, configuration, and workload. Designed for sustained, consistent performance in enterprise and data center applications.
