UGREEN Gigabit 10/100/1000Mbps PCI Express Network Adapter - US230 - 30771

JOD8.000
Tax included
UGREEN

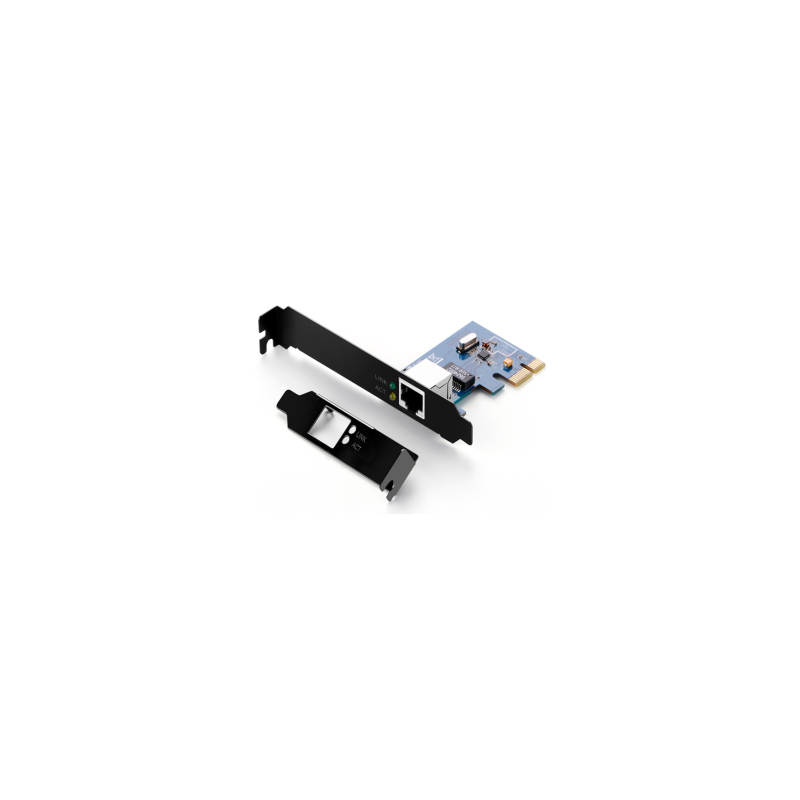

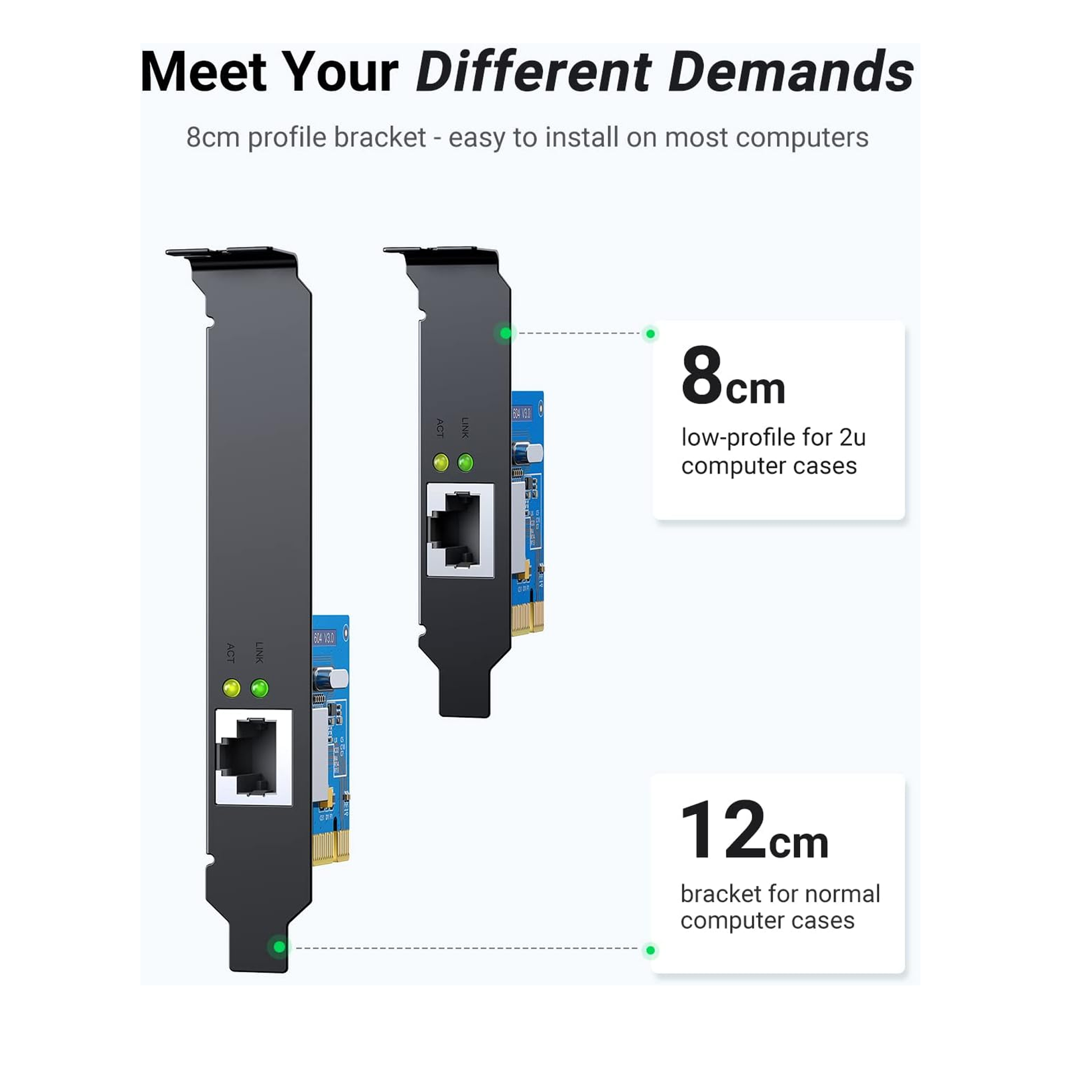

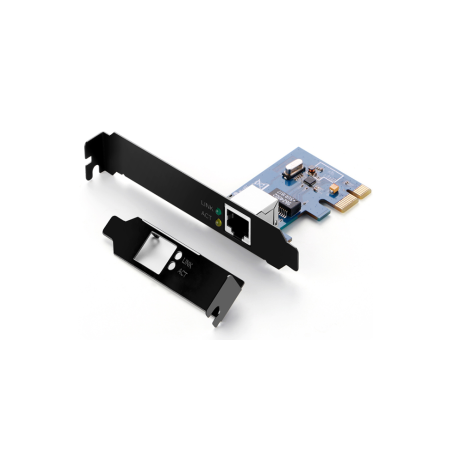

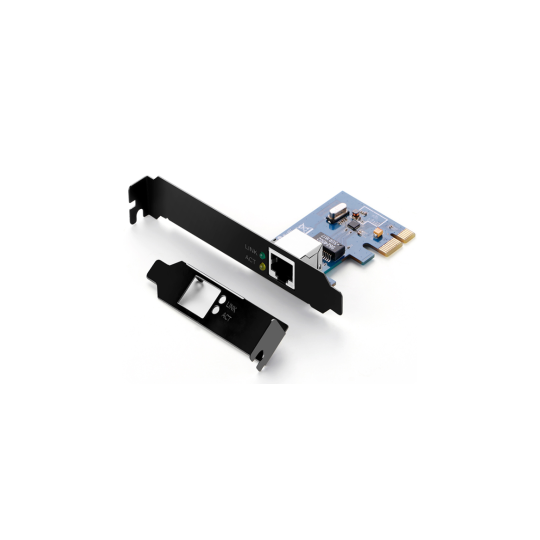

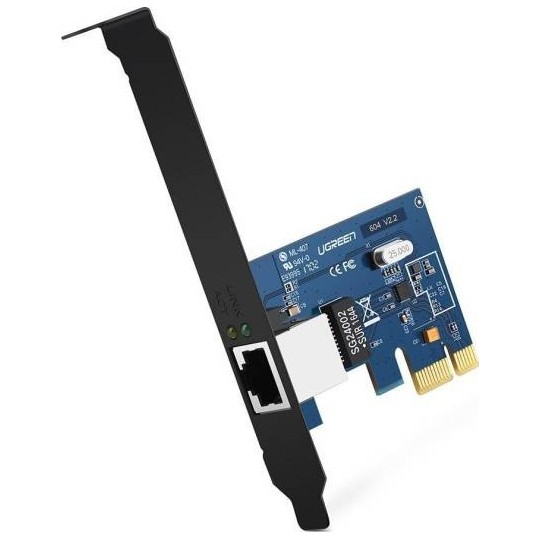

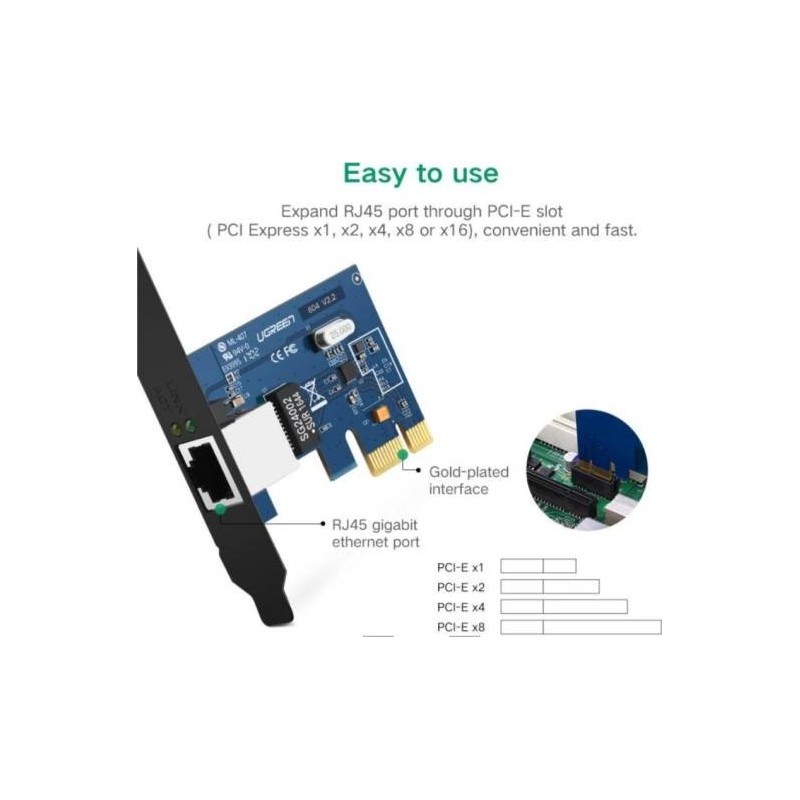

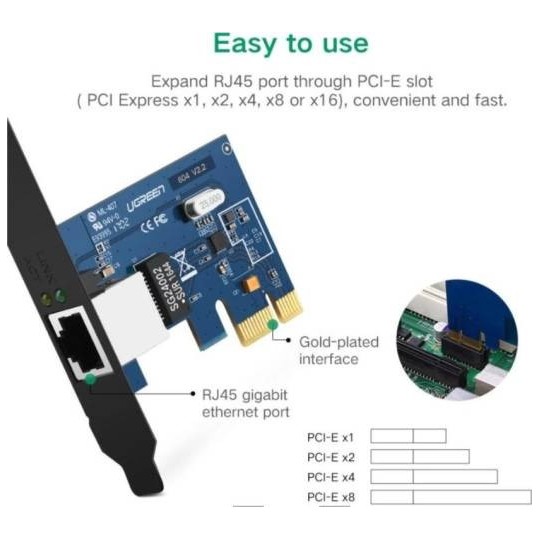

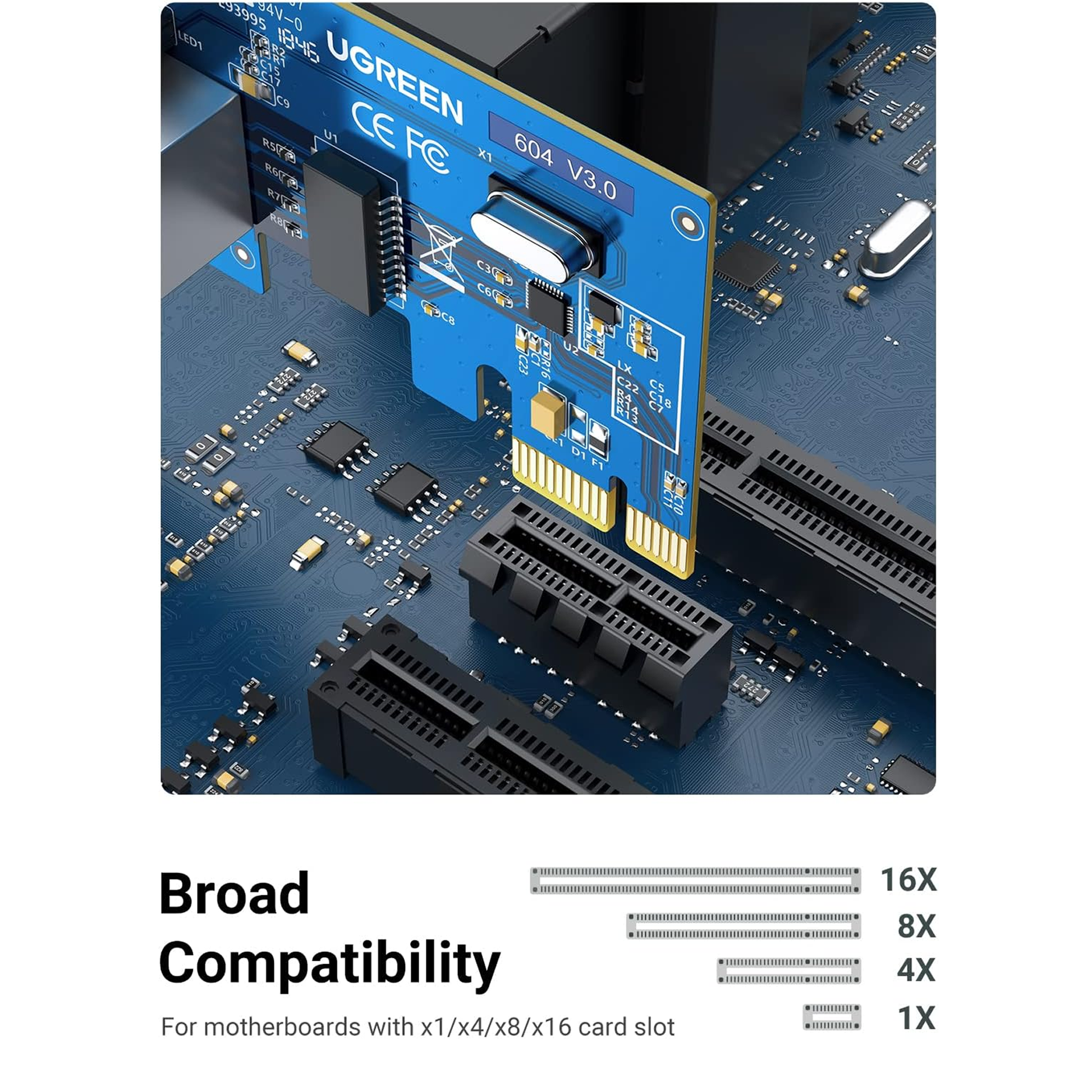

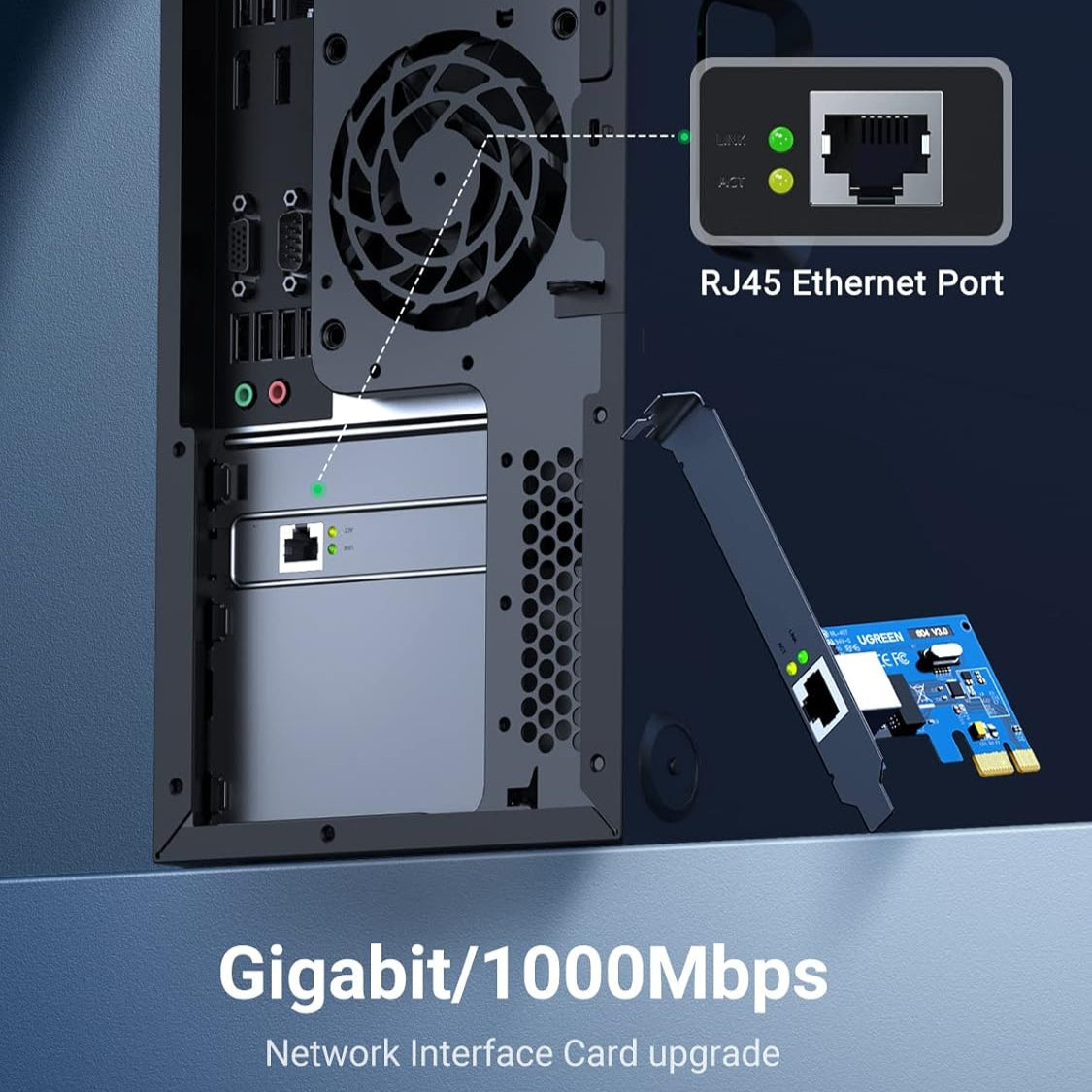

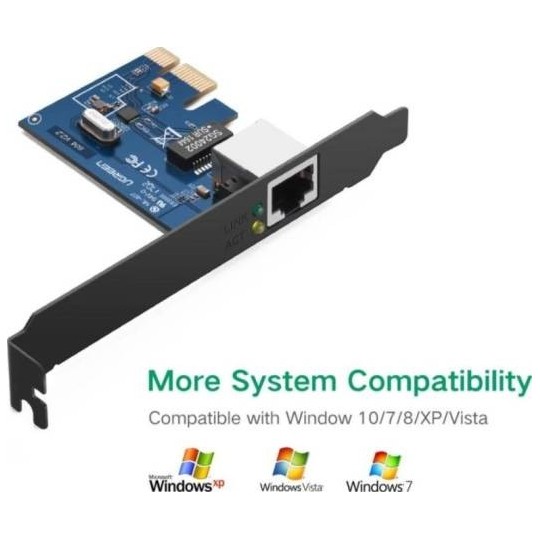

The UGREEN 30771 is a reliable PCI Express network adapter that adds a high-speed Gigabit Ethernet port (10/100/1000 Mbps) to desktop PCs. It's compatible with any PCIe x1/x2/x4/x8/x16 slot and includes a low-profile 8 cm bracket for compact cases. Powered by a Realtek RTL8168 chipset, it delivers stable wired connectivity—ideal for streaming, gaming, large file transfers, and network-intensive applications

Hurry up! Only 9999 item(s) left in Stock!
clear

Free Delivery

Free delivery on orders above 20 JOD
Delivery within 3 days.

The exact terms and conditions will be available after registration.

Free Delivery

FREE DELIVERY ON ORDER ABOVE 20 JOD

clear

SMS Confirmation Second Line

Please Note:  Items in this category are not able to be returned or exchanged, please understand.

SMS Confirmation Second Line

Return and exchange goods are not supported.

clear

Guarantee

Please Note: Items in this category are not able to be returned or exchanged, please understand.

Guarantee

We guarantee quality delivery

clear

Payment Security

Please Note: Items in this category are not able to be returned or exchanged, please understand.

Payment Security

We guarantee quality delivery

UGREEN Gigabit 10/100/1000Mbps PCI Express Network Adapter - US230 - 30771


Gigabit Ethernet PCI Express Card

A simple and reliable way to add or expand Gigabit Ethernet connectivity to any compatible computer. Suitable for multiple market segments and emerging applications, including desktop, mobile, workstation, server, communications platforms, and embedded systems.

Wide Application

  • Widely used on Motherboards, Notebooks, and Embedded Systems.
  • Add an Ethernet port to a workstation or server for redundancy or bridging.
  • Add networking capabilities to older systems with no Ethernet port.

Hardware Features

  • Integrated 10/100/1000M transceiver
  • Auto-Negotiation with Next Page capability
  • Supports PCI Express 1.1
  • Pair swap/polarity/skew correction
  • Crossover Detection & Auto-Correction
  • Supports 1-Lane 2.5Gbps PCI Express Bus
  • Embedded OTP memory
  • Transmit/Receive on-chip buffer support
  • Supports PCI MSI (Message Signaled Interrupt) and MSI-X
  • Supports 25MHz or 48MHz Oscillator
  • Power down/link down power saving/PHY disable mode
  • EMAC-393 ECMA ProxZzzy Standard for sleeping hosts
  • Supports LTR (Latency Tolerance Reporting) and OBFF (Optimized Buffer Flush/Fill)
  • 16-set 128-byte Wake-Up Frame pattern exact matching
  • Microsoft WPD (Wake Packet Detection) support

Important Notes

  • Power Supply: Only supports 5V power supply. Do not connect a 12V source.
  • Do not insert the SATA power supply cable in reverse direction.
  • Do not install this PCI-E card while the computer is powered on.
  • Please download and install the driver before use.
  • Check in Device Manager: Network Adapter → Realtek PCIe Family Controller #2.
  • Not supported: Linux or Mac OS.
  • Compatible only with PCI-E slots (not standard PCI slots).

Data sheet

Model
US230
Brand
UGREEN

Specific References

MPN
30771
