AC750 Wireless Dual Band Wi-Fi Router
The AC750 Wireless Dual Band Router is an affordable, reliable solution for small and medium homes that upgrades your network to Wi-Fi 5 (802.11ac). It delivers concurrent 2.4 GHz and 5 GHz wireless connectivity for smoother streaming, faster browsing, and better overall stability across multiple devices.
Key Benefits
- Dual-Band Performance: Up to ~300 Mbps on 2.4 GHz for broad coverage and up to ~433–450 Mbps on 5 GHz for high-speed tasks.
- Better Stability: Reduce interference by offloading demanding apps to the 5 GHz band.
- Effortless Setup: Quick install via browser or companion app (varies by brand), plus one-touch WPS for rapid device pairing.
- Enhanced Security: WPA/WPA2 encryption, SPI firewall, guest network, parental controls, and access control.
- Great Value: Ideal entry into 802.11ac (Wi-Fi 5) performance at a budget-friendly price.
Ideal For
- Streaming HD video, online classes, and video calls
- Light gaming and everyday browsing
- Apartments or small to medium homes (1–3 bedrooms)
- Households that need separate bands for smart home devices and media devices
Highlights & Features
- Wi-Fi Standard: 802.11ac (Wi-Fi 5), backward compatible with 802.11n/a/b/g
- Dual Bands: 2.4 GHz + 5 GHz operated simultaneously
- Antennas: 2–3 external omni-directional antennas for improved range (varies by model)

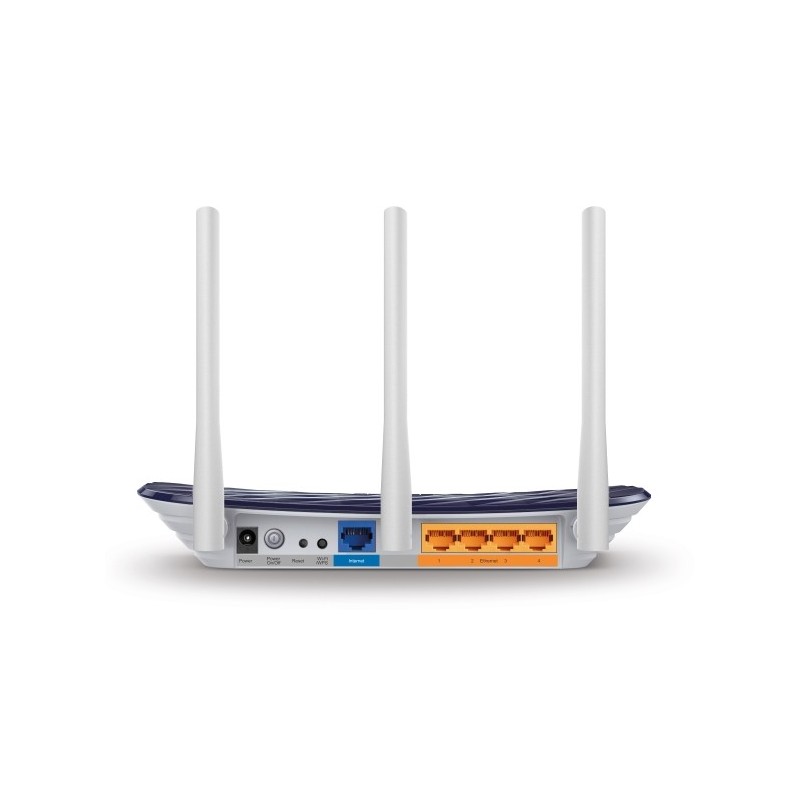

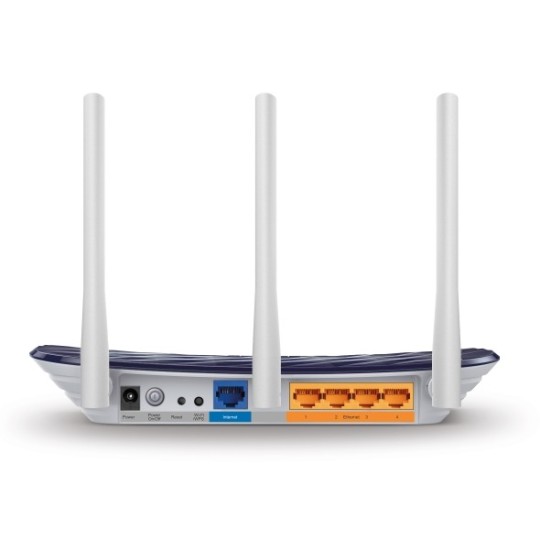

- Ethernet: 4× LAN + 1× WAN ports (commonly Fast Ethernet 10/100 Mbps)
- Controls: WPS/Reset button; Wi-Fi on/off; Power switch (availability varies)
- Security: WPA/WPA2, SPI firewall, MAC filtering, guest Wi-Fi, parental controls
- Management: Web interface; many models support mobile app management and remote admin
- Network Functions: DHCP server, NAT, port forwarding, DMZ, IPv6 support
- Modes (on some models): Router, Access Point, and Range Extender
Technical Specifications (Typical for AC750 Class)
| Category |
Specification |
| Wireless Standard |
IEEE 802.11ac/n/a (5 GHz), 802.11n/b/g (2.4 GHz) |
| Wi-Fi Speeds (theoretical) |
Up to ~433–450 Mbps (5 GHz) + up to ~300 Mbps (2.4 GHz); combined ~733–750 Mbps |
| Bands |
Dual band, concurrent 2.4 GHz and 5 GHz |
| Antennas |
2–3 fixed external omni-directional (model dependent) |
| Ethernet Ports |
1× WAN + 4× LAN (10/100 Mbps typical) |
| Processor & Memory |
Entry-level SoC with integrated 2.4/5 GHz radios; RAM/flash vary by brand |
| Security |
WPA/WPA2-PSK, SPI firewall, DoS protection, MAC filtering, guest network |
| QoS |
Basic bandwidth control / device prioritization (varies by firmware) |
| Management |
Web UI; many models support mobile app; firmware upgrade via web |
| LED Indicators |
Power, Internet/WAN, 2.4 GHz, 5 GHz, LAN, WPS (varies) |
| Power |
External adapter (commonly 9 V DC; check included adapter rating) |
| Dimensions & Weight |
Compact desktop footprint; exact size depends on brand/model |
| Operating Temperature |
0–40 °C (typical) |
| Compliance |
CE, FCC, RoHS (certifications vary by region) |
What’s in the Box
- AC750 Dual Band Router
- Power adapter
- RJ-45 Ethernet cable
- Quick installation guide
Easy Setup (Typical)
- Connect the router’s WAN port to your modem using the Ethernet cable.
- Power on the router and wait for the LED indicators to stabilize.
- Connect a phone/PC to the router’s default Wi-Fi (SSID/password printed on label) or via LAN cable.
- Open a browser and visit the setup page (printed on label) to run the quick setup wizard.
- Choose your Internet type (Dynamic IP/PPPoE/etc.), set your Wi-Fi name(s) and a strong password, then finish.
Usage Tips
- Place the router centrally and elevated for the best coverage.
- Use 5 GHz for streaming and gaming; keep IoT devices on 2.4 GHz for better range.
- Update firmware periodically for security and performance improvements.
- If many users stream simultaneously, consider a higher-class router (e.g., AC1200+ or Wi-Fi 6).
Limitations to Note
- LAN/WAN ports are often Fast Ethernet (100 Mbps); wired speeds will be capped at that rate.
- Real-world Wi-Fi throughput will be lower than theoretical due to distance, walls, and device capabilities.
- Advanced features like MU-MIMO are typically not present in AC750-class devices.
Compatibility
Works with all major ISPs and supports popular Internet connection types including Dynamic IP, Static IP, PPPoE, and (on some models) PPTP/L2TP. Compatible with Windows, macOS, Linux, iOS, Android, smart TVs, game consoles, and IoT devices.
SEO & Search Keywords
AC750 router, dual-band Wi-Fi router, 802.11ac router, Wi-Fi 5, 2.4 GHz and 5 GHz, wireless internet router, parental control, guest Wi-Fi, home router, budget router.
Warranty
Standard manufacturer warranty applies (coverage and duration vary by brand and region).
Note: “AC750” is a performance class. Exact ports, antennas, firmware features, and accessories may vary depending on the specific brand and model.
