TP-LINK RE505X / AX1500 Wi-Fi Range Extender

JOD40.000
Tax included
TP-Link
840030700422

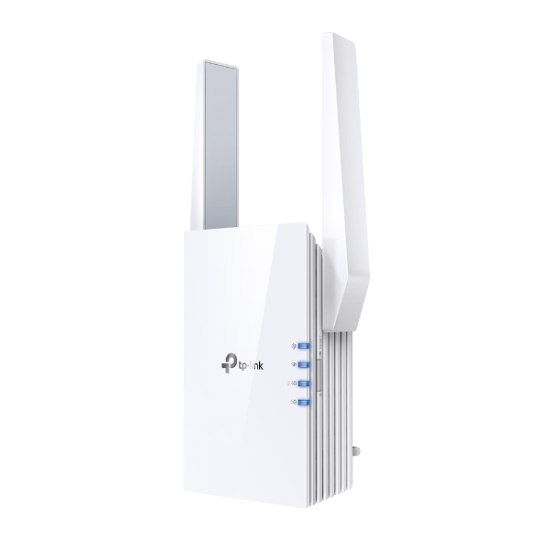

The TP-LINK RE505X AX1500 Wi-Fi Range Extender expands your wireless coverage with the latest Wi-Fi 6 (802.11ax) technology. Delivering up to 1500 Mbps combined dual-band speed (300 Mbps @ 2.4 GHz + 1200 Mbps @ 5 GHz), it eliminates dead zones and provides a stable, high-speed connection for streaming, gaming, and smart home devices. Featuring OneMesh™ compatibility, easy WPS setup, and a Gigabit Ethernet port for wired connections, the RE505X is ideal for boosting Wi-Fi in every corner of your home.

Hurry up! Only 9999 item(s) left in Stock!
clear

Free Delivery

Free delivery on orders above 20 JOD
Delivery within 3 days.

The exact terms and conditions will be available after registration.

Free Delivery

FREE DELIVERY ON ORDER ABOVE 20 JOD

clear

SMS Confirmation Second Line

Please Note:  Items in this category are not able to be returned or exchanged, please understand.

SMS Confirmation Second Line

Return and exchange goods are not supported.

clear

Guarantee

Please Note: Items in this category are not able to be returned or exchanged, please understand.

Guarantee

We guarantee quality delivery

clear

Payment Security

Please Note: Items in this category are not able to be returned or exchanged, please understand.

Payment Security

We guarantee quality delivery

TP-LINK RE505X / AX1500 Wi-Fi Range Extender

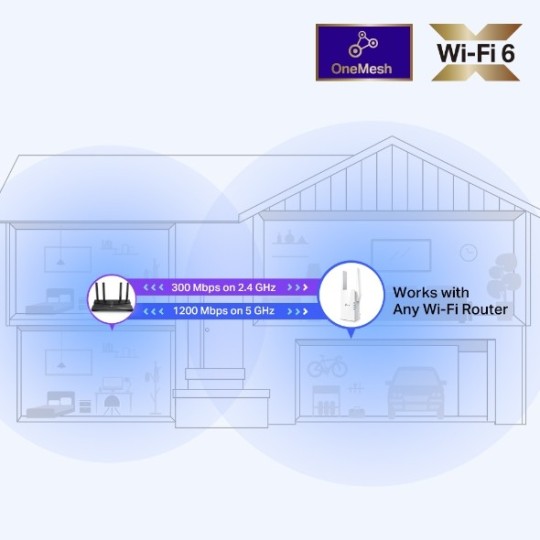

Boost coverage, eliminate dead zones, and enjoy Wi-Fi 6 performance with the TP-LINK RE505X (AX1500) dual-band range extender. Designed for homes and offices, it works as a wireless extender or as a wired access point, and can integrate with compatible TP-LINK routers via OneMesh™ for seamless roaming under a single network name (SSID).

Key Highlights

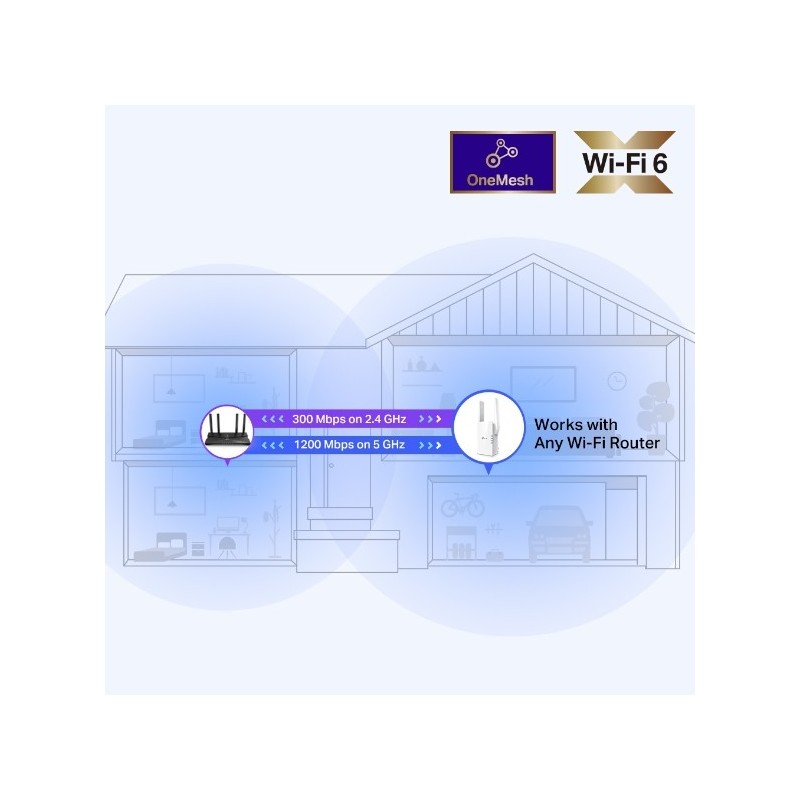

  • Wi-Fi 6 (802.11ax) dual-band: up to 300 Mbps (2.4 GHz) + 1200 Mbps (5 GHz) ≈ AX1500 class
  • Extender/Repeater mode or Access Point (AP) mode via Ethernet backhaul
  • Compatible with OneMesh™ routers for seamless whole-home roaming
  • 1 × Gigabit Ethernet port (connect a wired device or use as AP uplink)

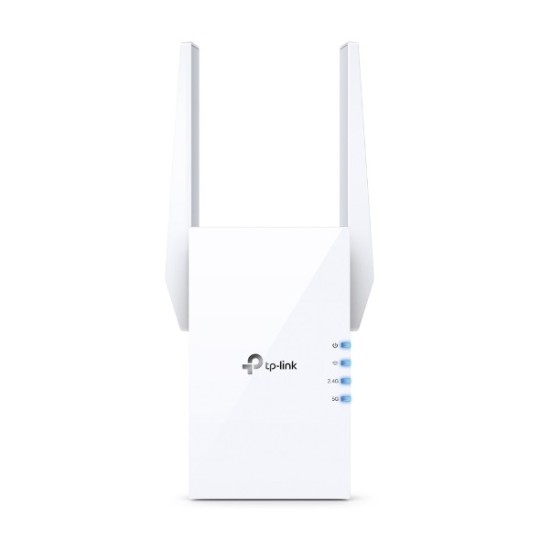

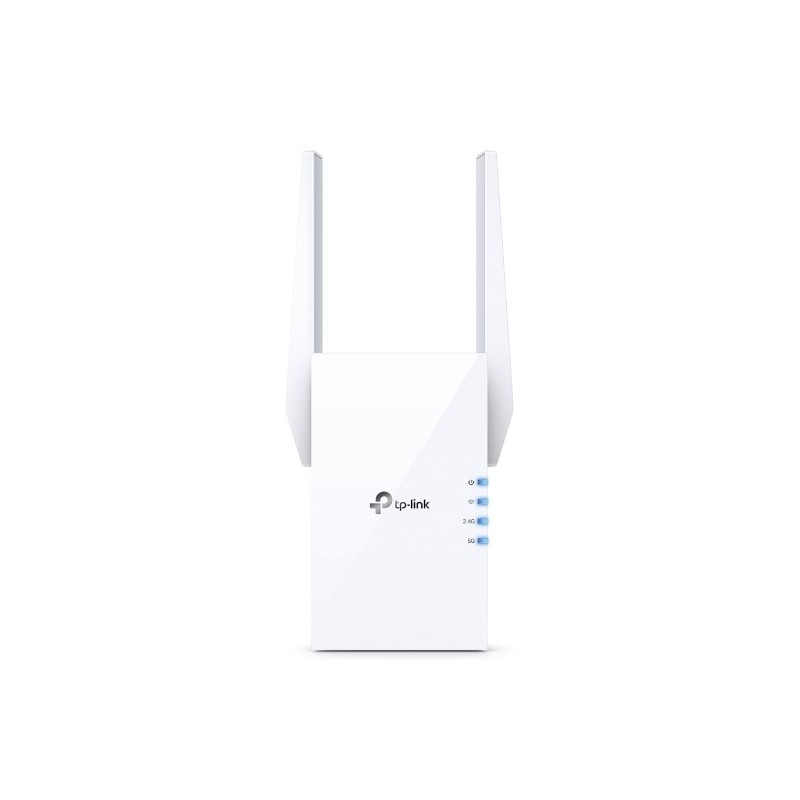

  • Smart signal indicator LEDs to help you find the best placement

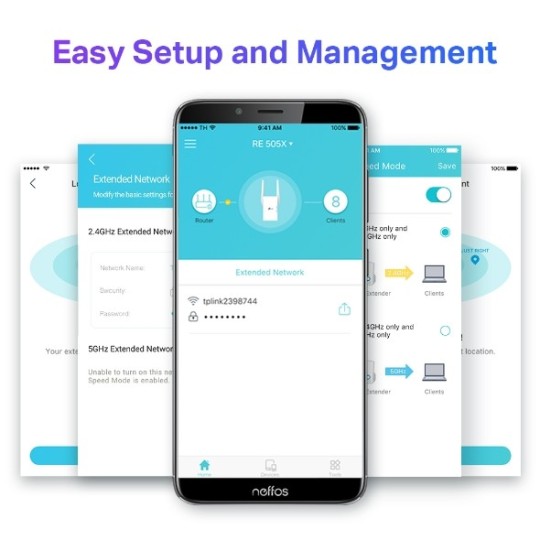

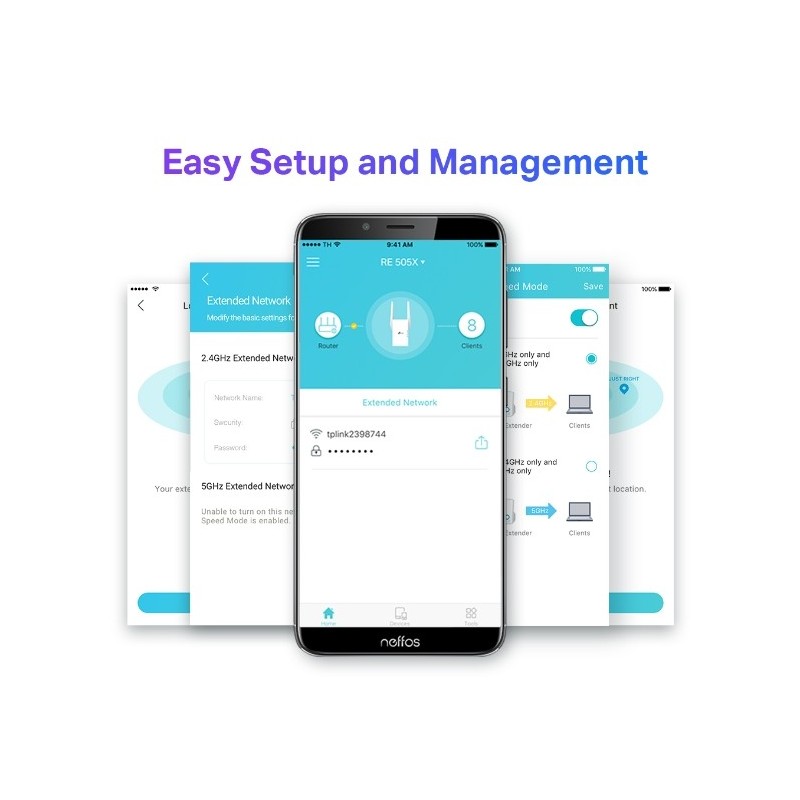

  • Easy setup with WPS button or TP-Link Tether app (iOS/Android)
  • Adaptive Path Selection & OFDMA/802.11ax efficiency for busy networks

Who Is It For?

Ideal for apartments, multi-story homes, and small offices that need stronger Wi-Fi in bedrooms, living rooms, garages, or upstairs areas where the main router signal is weak.

Technical Specifications

Model TP-LINK RE505X
Wireless Standards IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6), dual-band
Bands & Rates 2.4 GHz: up to 300 Mbps
5 GHz: up to 1200 Mbps
Aggregate class: AX1500 (theoretical)

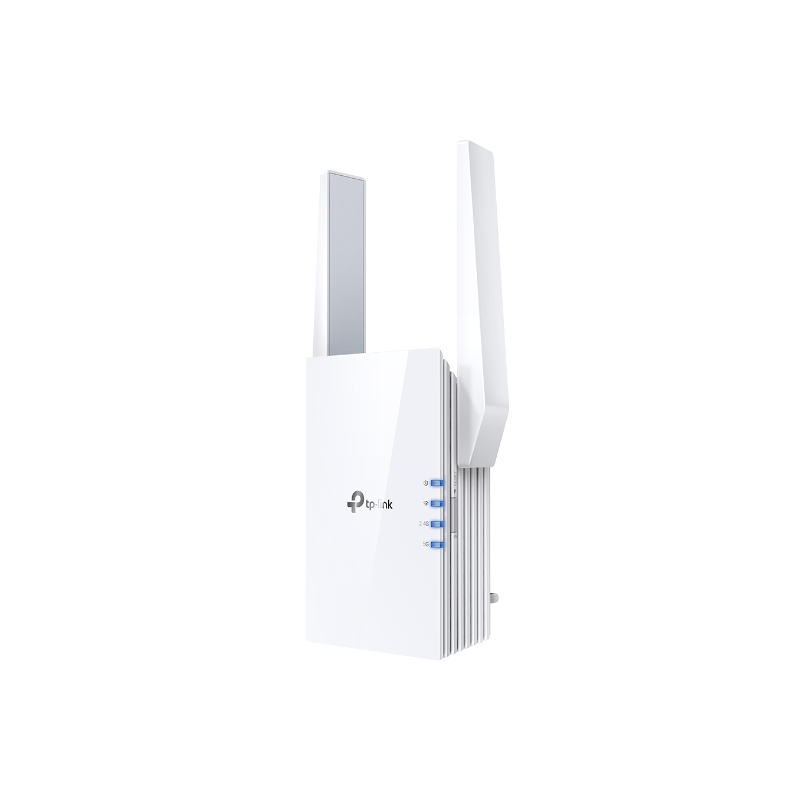

Antennas 2 × external adjustable antennas
Processor & Features Wi-Fi 6 features including OFDMA, 1024-QAM; Adaptive Path Selection; MU-MIMO support (client/radio dependent)
Ports 1 × Gigabit Ethernet (RJ-45)
Buttons WPS, Reset
Modes Range Extender / Repeater mode; Access Point (AP) mode via Ethernet
Roaming / Mesh OneMesh™ compatible with supported TP-LINK routers (single-SSID roaming)
Security WEP 64/128-bit, WPA/WPA2-PSK (device/region firmware dependent)
Management TP-Link Tether app (iOS/Android), Web UI, WPS pairing, LED signal indicators
Power 100–240 V ~ 50/60 Hz; max consumption approx. 10 W
Dimensions Approx. 124.8 × 74.0 × 46.0 mm (H × W × D)
Operating Conditions 0 °C to 40 °C; Storage: −40 °C to 70 °C; Humidity: 10%–90% non-condensing
Certifications CE, FCC, RoHS (may vary by region)

What’s in the Box

  • TP-LINK RE505X AX1500 Wi-Fi Range Extender
  • Quick Installation Guide

Placement & Setup Tips

  1. Plug the RE505X roughly halfway between your router and the weak-signal area.
  2. Use the LED signal indicator to fine-tune placement (green = good).
  3. Press the router’s WPS button, then press the extender’s WPS to pair; or use the TP-Link Tether app for guided setup.

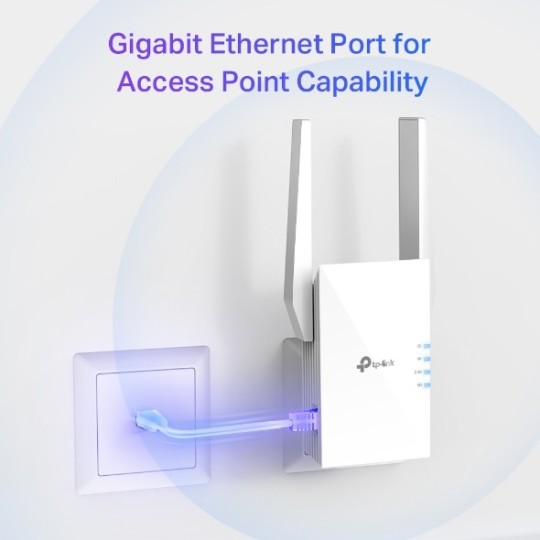

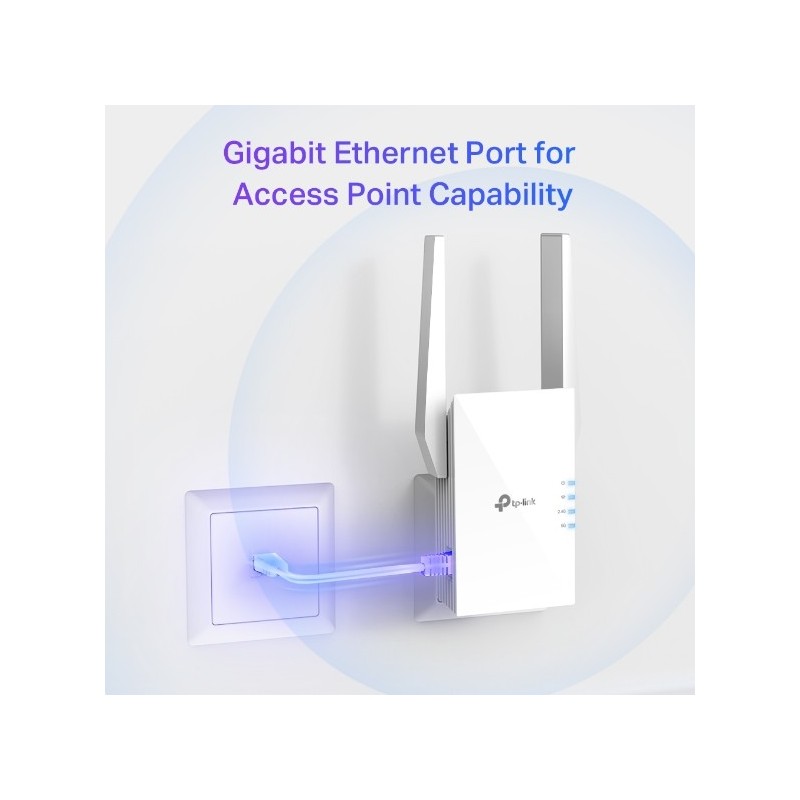

  4. For maximum performance, consider AP mode: connect the RE505X to your router/switch via Ethernet, then broadcast Wi-Fi at the far end.

Notes & Disclaimers

  • AX1500 speeds are theoretical. Actual throughput depends on client capability, distance, obstacles, interference, and ISP speed.
  • OneMesh™ features require a compatible TP-LINK OneMesh router and current firmware.
  • Security standards and features may vary by region/firmware version.
SKU: RE505X  |  Category: Wi-Fi Range Extenders  |  Brand: TP-LINK

Data sheet

Model
AX1500
Color
White
Brand
TP-LINK

Specific References

EAN13
840030700422
MPN
RE505X
