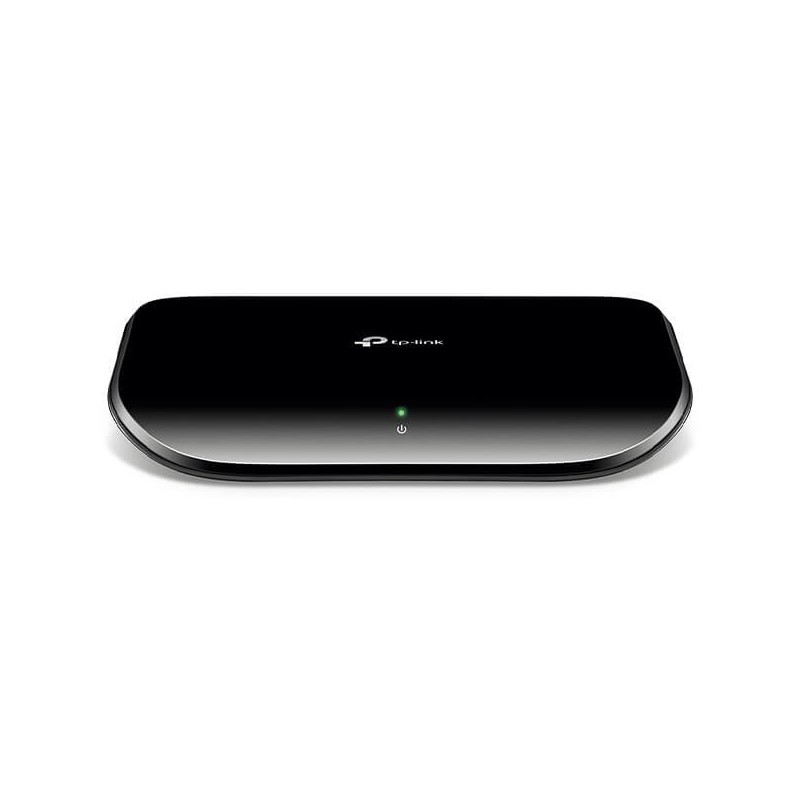

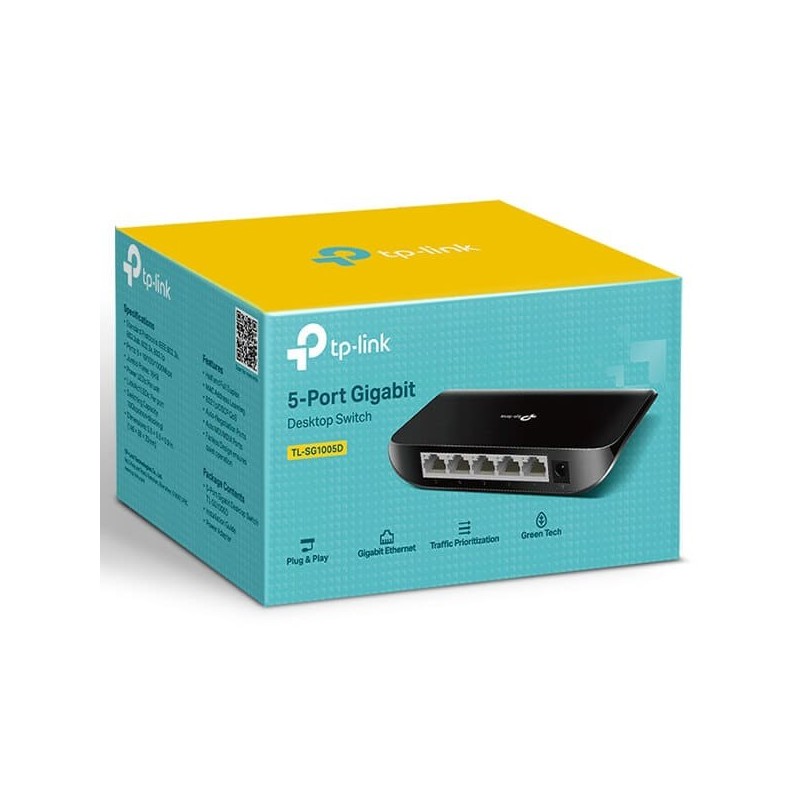

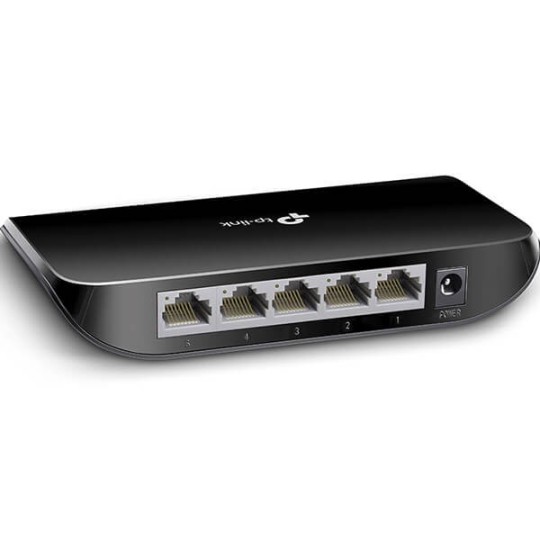

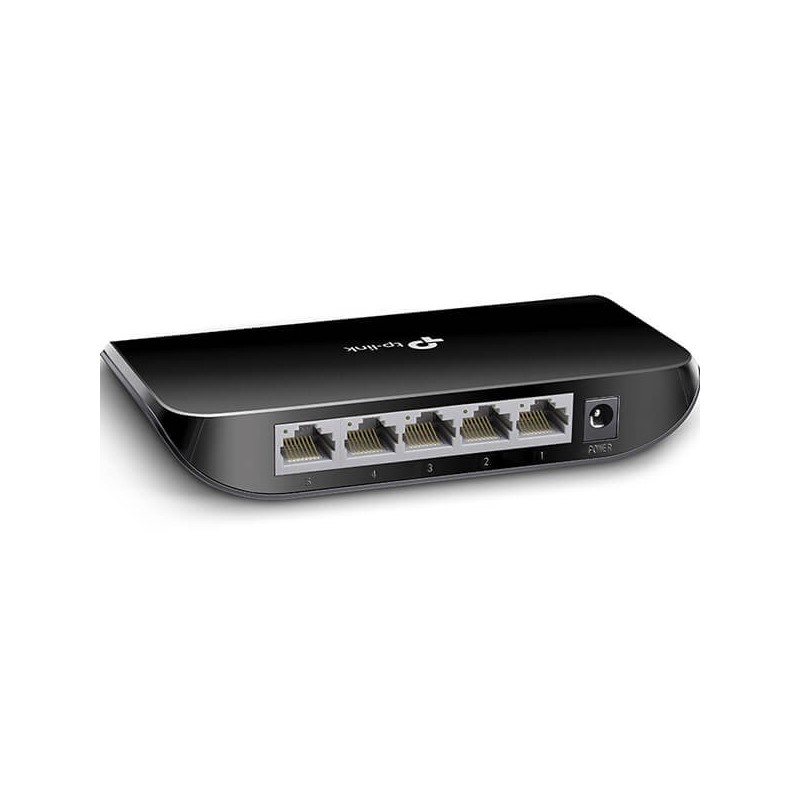

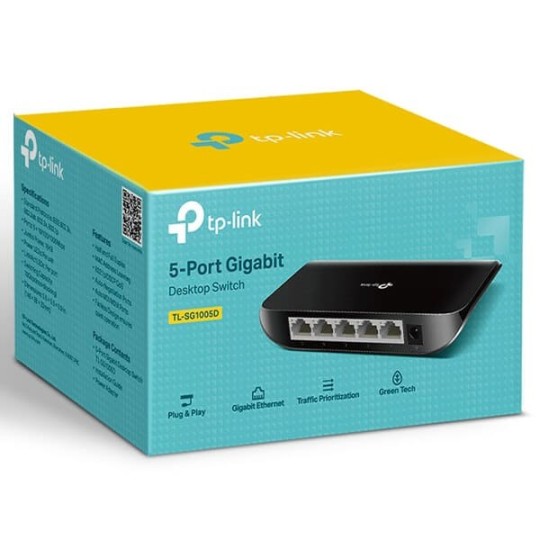

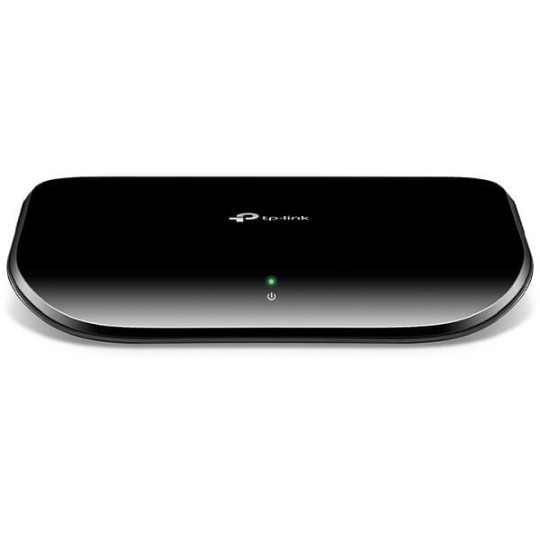

TP-LINK SG1005D / 5-Port Gigabit Desktop Switch
TP-LINK SG1005D / 5-Port Gigabit Desktop Switch
TP-LINK SG1005D / 5-Port Gigabit Desktop Switch
TP-LINK SG1005D / 5-Port Gigabit Desktop Switch
TP-LINK SG1005D / 5-Port Gigabit Desktop Switch
0

TP-LINK SG1005D / 5-Port Gigabit Desktop Switch

JOD12.000
Tax included
TP-Link
0845973020255

The TP-LINK TL-SG1005D is a 5-Port Gigabit Desktop Switch that delivers high-speed wired connectivity for home and small office networks. It features five 10/100/1000 Mbps auto-negotiation ports, plug-and-play installation, and Green Ethernet technology for reduced power consumption. Its fanless, compact design ensures silent operation, making it ideal for desktops or wall mounting. Perfect for connecting PCs, gaming consoles, NAS, and printers with gigabit performance and zero configuration required.

Hurry up! Only 9999 item(s) left in Stock!
clear

Free Delivery

Free delivery on orders above 20 JOD
Delivery within 3 days.

The exact terms and conditions will be available after registration.

Free Delivery

FREE DELIVERY ON ORDER ABOVE 20 JOD

clear

SMS Confirmation Second Line

Please Note:  Items in this category are not able to be returned or exchanged, please understand.

SMS Confirmation Second Line

Return and exchange goods are not supported.

clear

Guarantee

Please Note: Items in this category are not able to be returned or exchanged, please understand.

Guarantee

We guarantee quality delivery

clear

Payment Security

Please Note: Items in this category are not able to be returned or exchanged, please understand.

Payment Security

We guarantee quality delivery

TP-LINK TL-SG1005D — 5-Port Gigabit Desktop Switch


The TL-SG1005D is a compact, plug-and-play unmanaged Gigabit Ethernet switch designed to expand your wired network at home or in a small office. With 5 × 10/100/1000 Mbps RJ-45 ports, silent fanless operation, and energy-saving technology, it delivers reliable high-speed connectivity for PCs, game consoles, NAS, IP cameras, printers, and more.

Key Features

  • 5 × Gigabit ports (10/100/1000 Mbps) for high-speed wired expansion.
  • Auto-Negotiation & Auto MDI/MDIX: each port auto-detects speed/duplex and crossover, so no special cables are required.
  • Green Ethernet power-saving: intelligently adjusts power consumption based on link status and cable length.
  • Store-and-Forward switching with IEEE 802.3x flow control for dependable data transfer.
  • Jumbo frame support (up to ~15 KB) to improve efficiency for large data transfers.
  • Fanless, silent design with low power consumption.
  • Desktop or wall-mount placement options; compact and lightweight housing.
  • Plug & Play: no configuration, no software, no management overhead.

Typical Use Cases

  • Add extra Ethernet ports to a router in a home or small office.
  • Wired connections for gaming, streaming, and low-latency workstations.
  • Connect NAS devices for fast local backups and file sharing.
  • Small clusters of IP cameras, printers, or VoIP phones (non-PoE).

What’s in the Box

  • TL-SG1005D 5-Port Gigabit Desktop Switch
  • External power adapter
  • Quick Installation Guide
  • Rubber feet (pre-applied) and/or mounting slots on chassis

Technical Specifications

Ports 5 × RJ-45 10/100/1000 Mbps, Auto-Negotiation, Auto MDI/MDIX
Standards IEEE 802.3 (10Base-T), 802.3u (100Base-TX), 802.3ab (1000Base-T), 802.3x (flow control)
Switching Capacity Up to 10 Gbps (non-blocking)
Forwarding Method Store-and-Forward
MAC Address Table 8K entries
Packet Buffer Typically ≥1 Mb (model/hardware revision dependent)
Jumbo Frames Up to ~15,000 bytes
Flow Control IEEE 802.3x (Full-Duplex) / Backpressure (Half-Duplex)
QoS 802.1p/DSCP traffic prioritization (hardware-assisted; unmanaged)
Power External adapter, typically 9V DC ~0.6A
Power Consumption ~2.4–3.1 W (max), energy-saving with Green Ethernet
Heat Dissipation Approx. 8–11 BTU/h (max)
Housing Fanless, compact desktop chassis; wall-mount slots
Dimensions (W × D × H) Approx. 140 × 88 × 23 mm (5.5″ × 3.5″ × 0.9″)
LED Indicators Per-port Link/Act (10/100/1000M), Power
Operating Temperature 0°C–40°C (32°F–104°F)
Storage Temperature -40°C–60°C (-40°F–140°F)
Operating Humidity 10%–90% RH, non-condensing
Certifications CE, FCC, RoHS (varies by region/hardware version)
Warranty Manufacturer limited warranty (terms vary by region)
Management Unmanaged (no web/CLI/SNMP)
PoE Support Not supported (requires separate power for PoE devices)
Mounting Desktop placement; wall-mountable
Hardware Versions Multiple revisions exist (Vx); specifications may vary slightly. Check the device label for the HW version.

Benefits

  • Easy expansion: instantly adds 5 Gigabit ports to any router or existing switch.
  • High performance: non-blocking 10 Gbps switching fabric and jumbo frame support for large transfers.
  • Low noise, low power: fanless operation and energy-saving features for quiet desktops and efficient 24/7 use.
  • Hassle-free: no configuration required; simply plug in and go.

Limitations & Notes

  • Unmanaged device — no VLANs, port mirroring, ACLs, or SNMP.
  • No Power over Ethernet (PoE).
  • Actual throughput depends on connected devices and upstream links.
  • Specifications can vary slightly by hardware version and region.

Tip: For metal housing, PoE support, or advanced features (VLANs, management), consider TP-Link’s Smart/Managed or PoE switch families.

Data sheet

Model
SG1005D
Color
Black
Brand
TP-LINK

Specific References

EAN13
0845973020255
MPN
SG1005D
