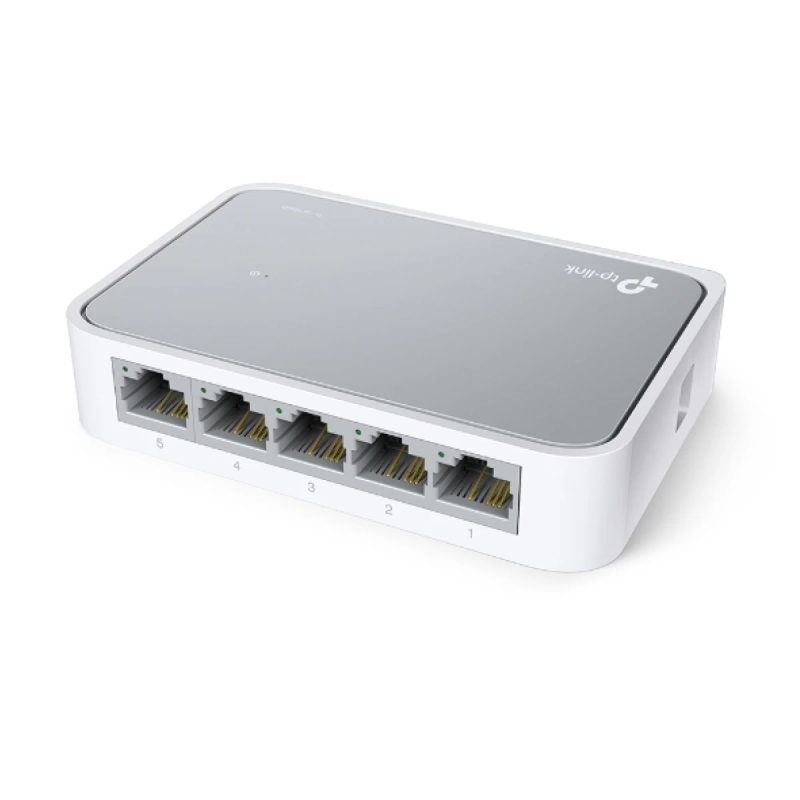

TP-LINK SF1005D / 5-Port 10/100Mbps Desktop Switch
TP-LINK SF1005D / 5-Port 10/100Mbps Desktop Switch
TP-LINK SF1005D / 5-Port 10/100Mbps Desktop Switch
0

TP-LINK SF1005D / 5-Port 10/100Mbps Desktop Switch

JOD6.000
Tax included
TP-Link
0845973020064

TP-LINK TL-SF1005D is a compact 5-Port 10/100 Mbps desktop switch that expands your wired network instantly. It features Auto MDI/MDIX, plug-and-play setup, and energy-saving Green Ethernet technology in a silent, fanless design—perfect for home or small office use.

Hurry up! Only 9999 item(s) left in Stock!
clear

Free Delivery

Free delivery on orders above 20 JOD
Delivery within 3 days.

The exact terms and conditions will be available after registration.

Free Delivery

FREE DELIVERY ON ORDER ABOVE 20 JOD

clear

SMS Confirmation Second Line

Please Note:  Items in this category are not able to be returned or exchanged, please understand.

SMS Confirmation Second Line

Return and exchange goods are not supported.

clear

Guarantee

Please Note: Items in this category are not able to be returned or exchanged, please understand.

Guarantee

We guarantee quality delivery

clear

Payment Security

Please Note: Items in this category are not able to be returned or exchanged, please understand.

Payment Security

We guarantee quality delivery

TP-LINK TL-SF1005D — 5-Port 10/100 Mbps Desktop Switch


The TL-SF1005D (often listed as “SF1005D”) is a Fast Ethernet (10/100 Mbps) unmanaged switch designed to expand your wired network instantly. It’s plug-and-play (no configuration needed), fanless for silent operation, and uses energy-efficient technology that adjusts power based on link status and cable length.

Key Features

  • 5× 10/100 Mbps RJ-45 ports with auto-negotiation
  • Auto MDI/MDIX on every port (no crossover cables needed)
  • Store-and-forward switching architecture for reliable data delivery
  • IEEE 802.3x flow control (full-duplex) and backpressure (half-duplex)
  • Energy-saving “Green Ethernet” technology
  • Fanless, silent desktop design with compact footprint
  • Plug-and-Play: connect and go—no software or setup required
  • LED indicators for Power and per-port Link/Activity

Typical Uses

  • Add ports for PCs, TVs/streamers, game consoles, printers, and access points
  • Small office / home office workstations and POS terminals
  • Quiet environments where fanless, desktop hardware is preferred

What’s in the Box

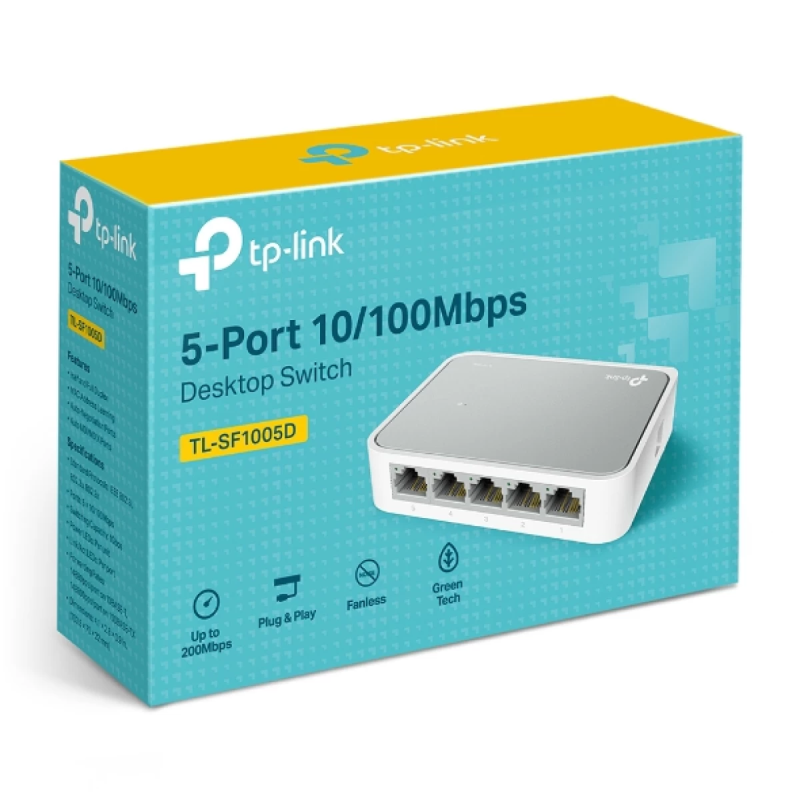

  • TL-SF1005D 5-Port 10/100 Mbps Switch
  • External power adapter
  • Quick Installation Guide

Technical Specifications

Model TP-LINK TL-SF1005D (SF1005D)
Standards IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3x (Flow Control)
Ports 5 × 10/100 Mbps RJ-45, Auto-Negotiation, Auto MDI/MDIX
Switching Method Store-and-Forward; Non-blocking switching architecture
Forwarding Rates (per port) ~14,880 pps @ 10 Mbps; ~148,800 pps @ 100 Mbps
Jumbo Frame Up to 2K bytes
Buffer / MAC Automatic MAC address learning & aging (unmanaged)
LEDs Power; per-port Link/Activity
Power External adapter (typically 5 V DC); low power consumption
Dimensions Approx. 103.5 × 70 × 22 mm (4.07 × 2.76 × 0.87 in)
Enclosure Plastic, desktop form factor; fanless
Operating Temp / Humidity 0 °C to 40 °C; 10%–90% RH, non-condensing
Storage Temp / Humidity −40 °C to 60 °C; 5%–90% RH, non-condensing
Certifications CE, FCC, RoHS (varies by region)

Important Notes

  • This is an unmanaged Fast Ethernet switch (10/100 Mbps). For 1000 Mbps (Gigabit) networking, consider a Gigabit model.
  • Specifications can vary slightly by hardware version (e.g., V12, V15, V16). Check the label on your unit for exact revision details.
  • Keywords: TL-SF1005D, SF1005D, 5-Port switch, Fast Ethernet, 10/100, desktop, unmanaged, TP-LINK

Data sheet

Model
SF1005D
Color
Grey
Brand
TP-LINK

Specific References

EAN13
0845973020064
MPN
SF1005D
