UGREEN HDMI Splitter 1 In 4 Out - CM570 - 90514

JOD25.500
Tax included
UGREEN
6957303895144

The UGREEN ITEM NO 90514 HDMI Splitter 1 In 4 Out (CM570) duplicates a single HDMI input signal to four HDMI outputs simultaneously, delivering high-quality 4K@60Hz video and multi-format audio. Perfect for home theaters, gaming, classrooms, offices, and professional AV setups, it ensures stable transmission, wide compatibility, and easy plug-and-play operation.

In stock

Hurry up! Only 9999 item(s) left in Stock!
clear

Free Delivery

Free delivery on orders above 20 JOD
Delivery within 3 days.

The exact terms and conditions will be available after registration.

Free Delivery

FREE DELIVERY ON ORDER ABOVE 20 JOD

clear

SMS Confirmation Second Line

Please Note:  Items in this category are not able to be returned or exchanged, please understand.

SMS Confirmation Second Line

Return and exchange goods are not supported.

clear

Guarantee

Please Note: Items in this category are not able to be returned or exchanged, please understand.

Guarantee

We guarantee quality delivery

clear

Payment Security

Please Note: Items in this category are not able to be returned or exchanged, please understand.

Payment Security

We guarantee quality delivery

UGREEN HDMI Splitter 1 In 4 Out - CM570 - 90514


UGREEN 1 In 4 Out HDMI Splitter CM570

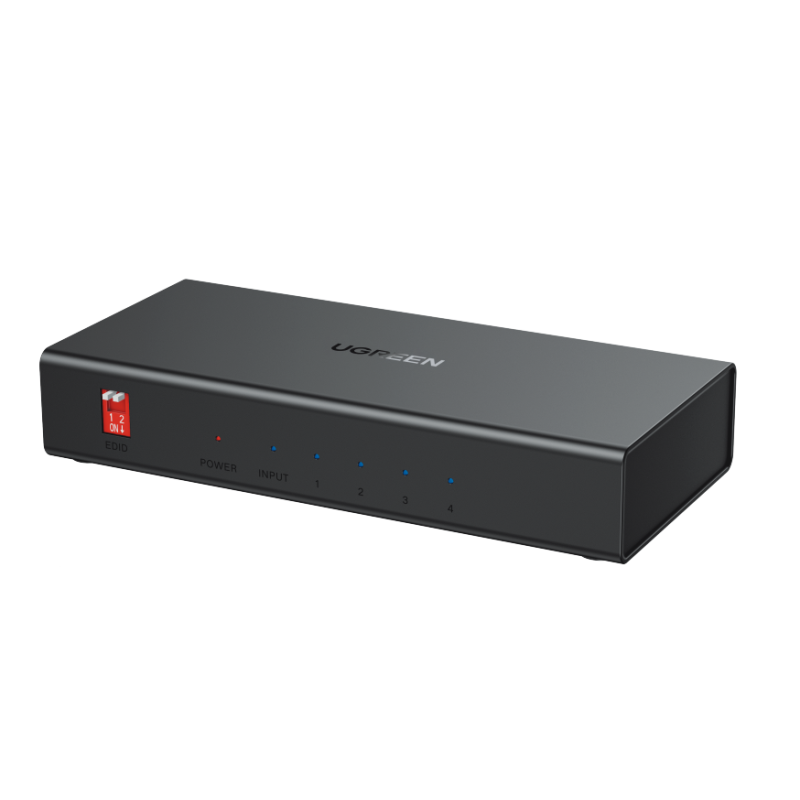

The UGREEN HDMI Splitter 1 In 4 Out CM570 is designed to duplicate a single HDMI input signal into four HDMI outputs simultaneously without signal loss or degradation. It allows users to distribute video and audio from one device—such as a PC, laptop, game console, Blu-ray player, or media player—to four displays including TVs, monitors, or projectors. This splitter is ideal for home entertainment, classrooms, office presentations, and professional AV installations.

Key Features

  • 1 Input, 4 Outputs: Connect one HDMI source and output to four displays at the same time.
  • High Resolution Support: Supports up to 4K@60Hz Ultra HD for clear, sharp visuals.
  • Backward Compatibility: Compatible with 1080p, 1080i, 720p, 576p, and 480p resolutions.
  • Audio Formats: Supports DTS-HD, Dolby TrueHD, LPCM7.1, DTS, Dolby AC-3, DSD.
  • HDCP Support: Complies with HDCP 2.2 / 1.4 standards for protected content.
  • Plug and Play: No driver installation needed; simply connect and use.

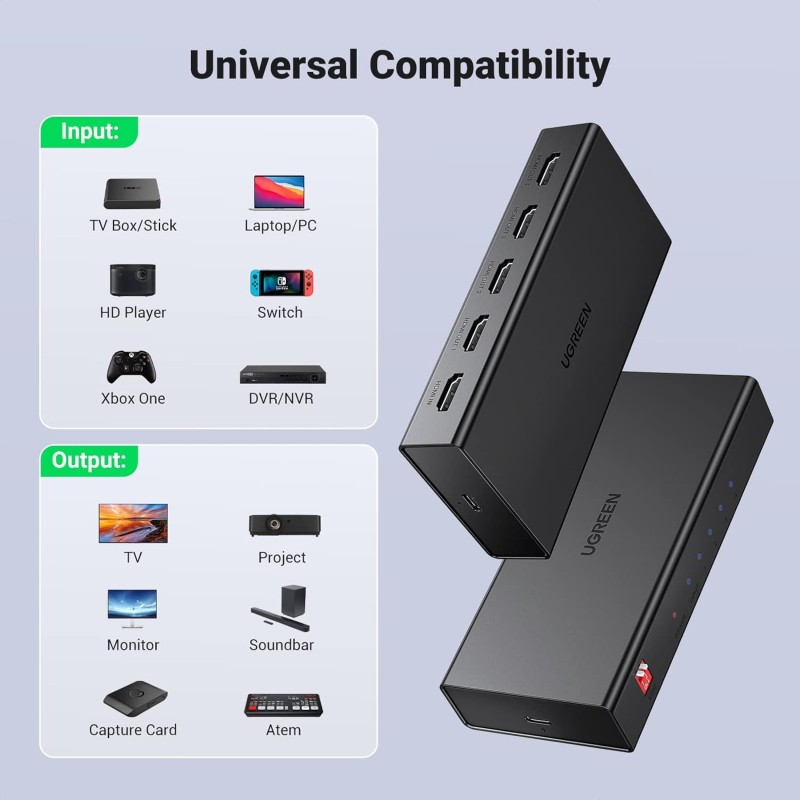

  • Wide Compatibility: Works with PS5/4/3, Xbox Series X/S, Switch, TV Box, Blu-ray players, laptops, and PCs.
  • Durable Design: Metal casing for better heat dissipation and long-lasting performance.
  • Power Supply: Includes a 5V DC Micro-USB power input for stable operation.

Technical Specifications

Model CM570 - 90514
Input Ports 1 × HDMI (female)
Output Ports 4 × HDMI (female)
HDMI Version HDMI 2.0b
HDCP HDCP 2.2 / 1.4 compliant
Max Resolution 4K@60Hz (3840×2160)
Supported Resolutions 4K@60Hz/30Hz, 1080p, 1080i, 720p, 576p, 480p
Audio Support DTS-HD, Dolby TrueHD, LPCM7.1, DTS, Dolby AC-3, DSD
Bandwidth 18Gbps
Power Input DC 5V via Micro-USB
Material Metal housing
Dimensions Compact, portable design
Color Black

Applications

  • Home Theater: Display the same movie or video on four TVs or projectors.
  • Gaming: Play games on a monitor while mirroring to multiple screens.
  • Office/Meetings: Share presentations on multiple displays simultaneously.
  • Education: Duplicate content from one source to several screens in classrooms.
  • Professional AV: Distribute HDMI signals for exhibitions, events, or displays.

Usage Notes

  • This is a splitter, not a switch—it duplicates a single input to multiple outputs but does not switch between inputs.
  • All connected displays will show identical content.
  • For best performance, use HDMI 2.0 cables supporting 18Gbps bandwidth.
  • If signal instability occurs, connect the included 5V DC power cable.

✅ The UGREEN CM570 HDMI Splitter 1 In 4 Out ensures stable transmission, excellent compatibility, and high-quality visuals—perfect for anyone needing to distribute HDMI signals to multiple displays.

Data sheet

Model
CM570
Color
Gray
Brand
UGREEN

Specific References

EAN13
6957303895144
MPN
90514
