UGREEN HDMI KVM Extender 1080P@60Hz Receiver - CM291 - 70438EU
UGREEN HDMI KVM Extender 1080P@60Hz Receiver - CM291 - 70438EU
UGREEN HDMI KVM Extender 1080P@60Hz Receiver - CM291 - 70438EU
UGREEN HDMI KVM Extender 1080P@60Hz Receiver - CM291 - 70438EU
UGREEN HDMI KVM Extender 1080P@60Hz Receiver - CM291 - 70438EU
UGREEN HDMI KVM Extender 1080P@60Hz Receiver - CM291 - 70438EU
UGREEN HDMI KVM Extender 1080P@60Hz Receiver - CM291 - 70438EU
0

UGREEN HDMI KVM Extender 1080P@60Hz Receiver - CM291 - 70438EU

JOD43.500
JOD48.500
Tax included
UGREEN

The UGREEN CM291 (70438EU) is a receiver unit for HDMI KVM extension, delivering 1080p@60Hz video, USB keyboard/mouse control, and IR remote passthrough over a single Cat5e/Cat6 cable up to 150 m. Ideal for digital signage, control rooms, and remote PC operation, it features HDCP 1.4, EDID support, and a durable metal housing.

In stock

Hurry up! Only 9999 item(s) left in Stock!
clear

Free Delivery

Free delivery on orders above 20 JOD
Delivery within 3 days.

The exact terms and conditions will be available after registration.

Free Delivery

FREE DELIVERY ON ORDER ABOVE 20 JOD

clear

SMS Confirmation Second Line

Please Note:  Items in this category are not able to be returned or exchanged, please understand.

SMS Confirmation Second Line

Return and exchange goods are not supported.

clear

Guarantee

Please Note: Items in this category are not able to be returned or exchanged, please understand.

Guarantee

We guarantee quality delivery

clear

Payment Security

Please Note: Items in this category are not able to be returned or exchanged, please understand.

Payment Security

We guarantee quality delivery

UGREEN HDMI KVM Extender 1080P@60Hz Receiver - CM291 - 70438EU

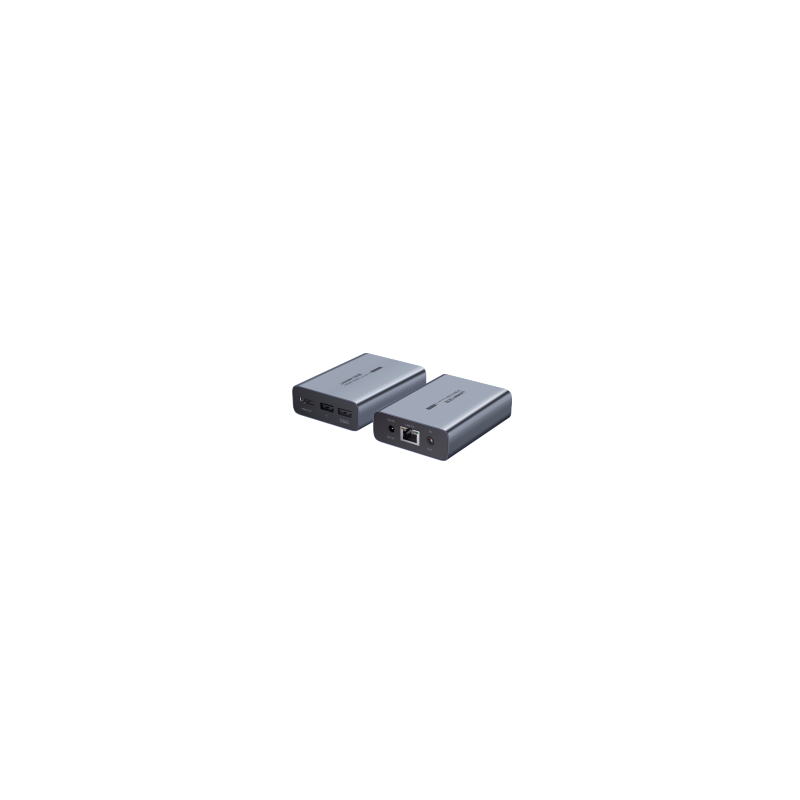

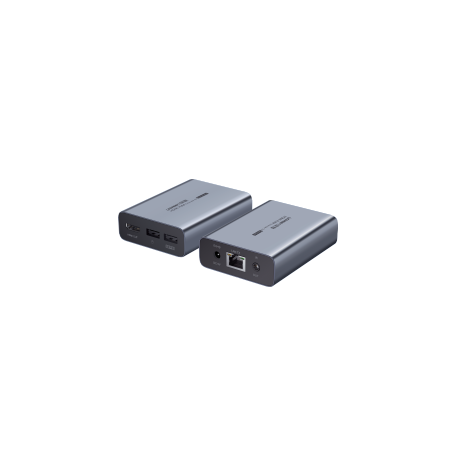

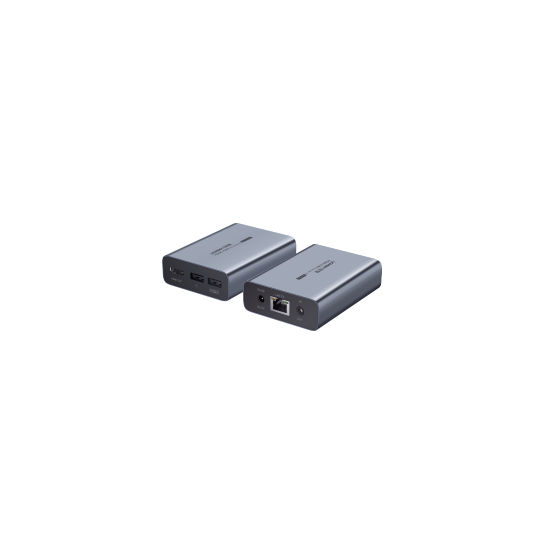

The UGREEN CM291 is the receiver unit of a KVM-capable HDMI extender set. Paired with the matching transmitter (sold separately), it extends HDMI video, USB keyboard/mouse, and IR remote signals over a single Cat5e/Cat6 cable up to 150 m, delivering smooth 1080p/60Hz output to your remote display while letting you control the host PC from afar.

Key Features

  • Long-distance extension: HDMI + USB (KVM) + IR over a single Cat5e/Cat6 cable up to 150 m.
  • Full HD clarity: supports up to 1920×1200 @ 60Hz (1080p compatible).

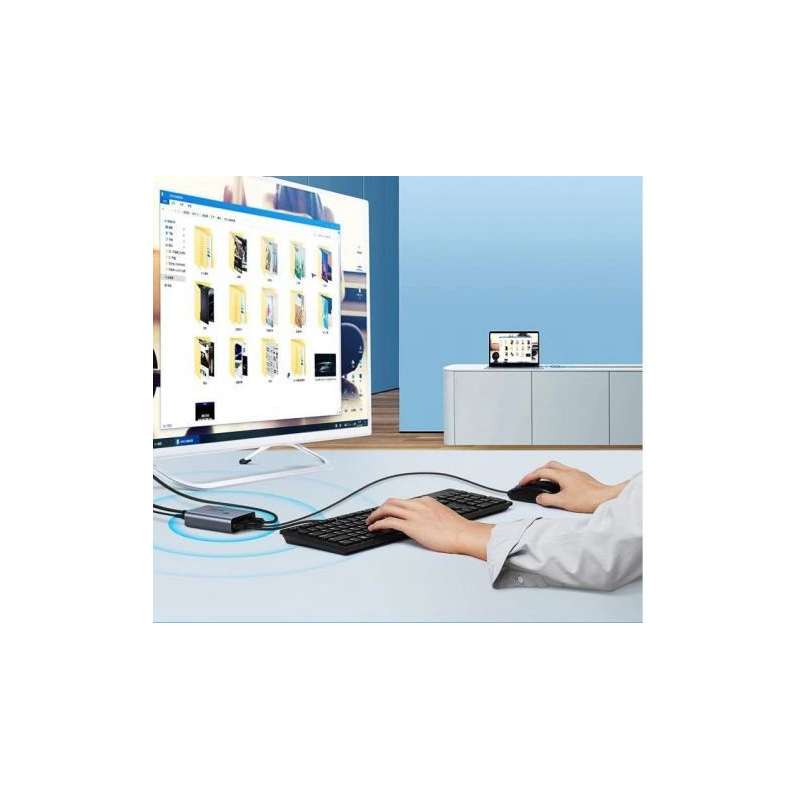

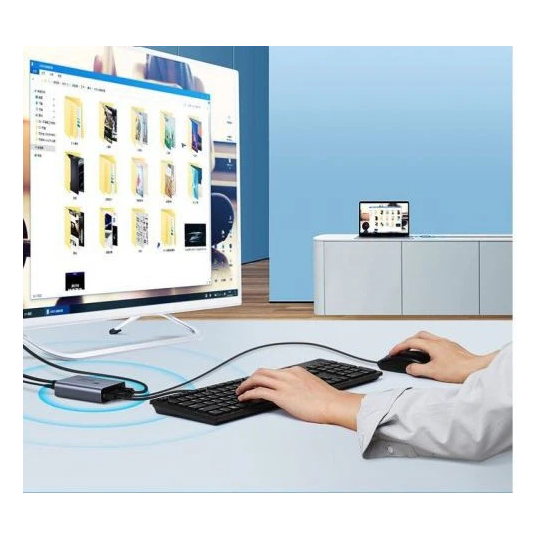

  • KVM control: plug your keyboard & mouse into the receiver to control the remote computer.
  • IR pass-through: control media devices at the source side using your remote from the display side.
  • EDID & HDCP 1.4: automatic resolution negotiation and copy-protected content passthrough.
  • Plug & play: no driver required, quick setup in minutes.
  • Solid build: compact metal housing for durability and heat dissipation.

Typical Use Cases

  • Control rooms & server rooms (keep PCs secure and silent, operate from the desk).
  • Digital signage and retail displays with centralized players.
  • Education, conference rooms, and auditoriums needing remote PC access.
  • Home AV: place the media source in a closet and control it from the TV area.

Important Notes

  • This listing is for the Receiver only. A compatible Transmitter unit is required (sold separately).
  • Use high-quality, pure-copper Cat5e/Cat6 network cable to achieve maximum distance and stability.
  • For the HDMI runs at each end, 26 AWG copper cables up to ~20 m are recommended.

Technical Specifications

Model UGREEN CM291 (Receiver) — 70438EU
Video Resolution Up to 1920×1200 @ 60 Hz (1080p/60)
Maximum Distance Up to 150 m over Cat5e/Cat6 (pure copper)
Signal Types HDMI video/audio, USB (keyboard/mouse), IR remote pass-through
HDMI Compliance HDCP 1.4, 3D support, EDID auto negotiation

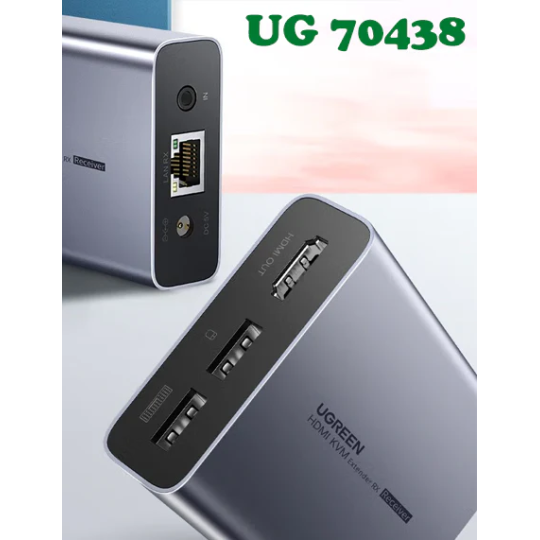

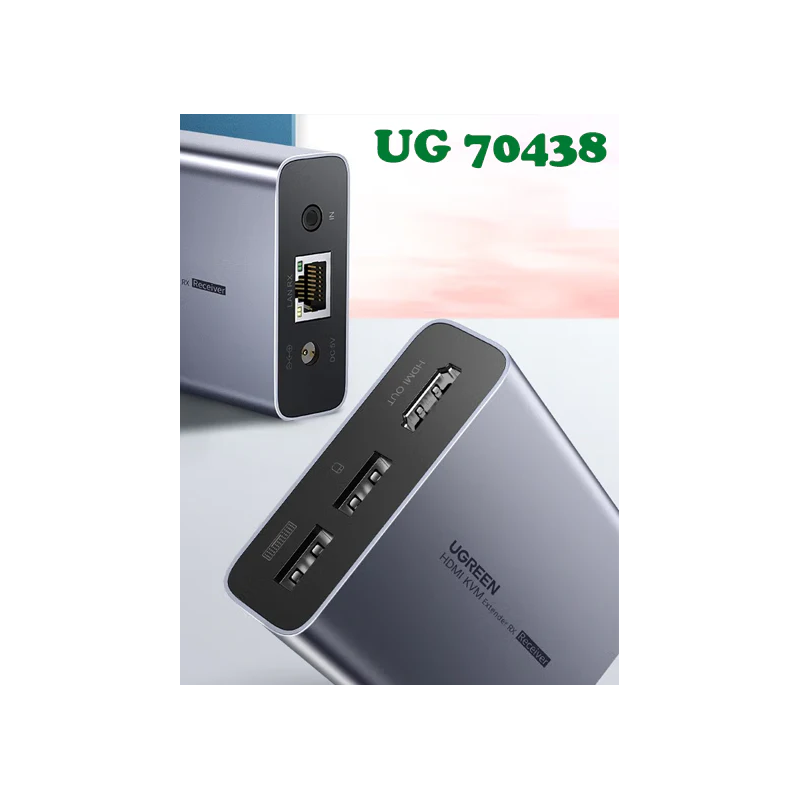

Receiver Ports 1× HDMI Out, 1× RJ45 (from transmitter), 2× USB-A (K/M), 1× IR, 1× DC power
Recommended HDMI Cables Up to ~20 m (26 AWG copper)
Power DC 5 V ⎓ 1 A (adapter may be required depending on setup)
Housing Metal/zinc-alloy shell for heat dissipation
Dimensions/Weight Approx. 88 × 65 × 24 mm / ~350 g (typical)
Operating Mode Point-to-point (TX ↔ RX); cascading may be supported in certain setups
Compatibility Windows, macOS, Linux; works with HDMI sources like PCs, media players, set-top boxes

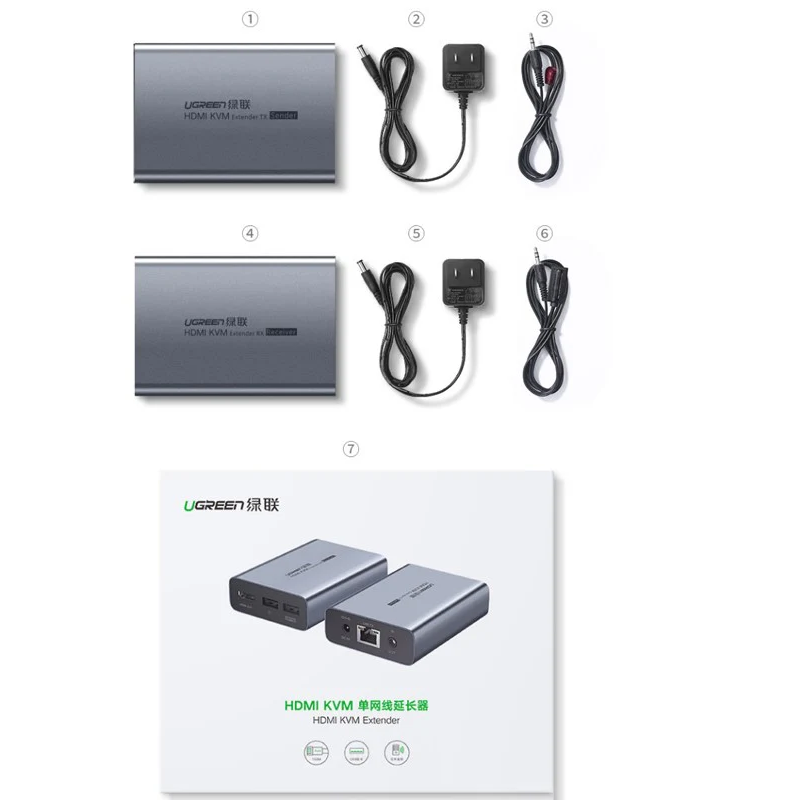

Package Contents

  • UGREEN CM291 Receiver (70438EU)
  • IR Receiver/Emitter accessories (where included)
  • Power Adapter (region variant, where included)
  • User Manual

Quick Installation

  1. Connect the Transmitter to your source (PC/media player) via HDMI and USB.
  2. Run a Cat5e/Cat6 cable from Transmitter to this Receiver (up to 150 m).
  3. At the Receiver, connect HDMI Out to your TV/monitor.
  4. Plug your keyboard & mouse into the Receiver’s USB ports.
  5. Connect IR leads if remote control pass-through is desired.
  6. Power on units (5 V/1 A if required). Video should appear; KVM control becomes active.

Why Choose This Model?

  • Reliable 1080p/60 performance for long distances without complex configuration.
  • All-in-one extension (video + USB + IR) simplifies installs and reduces cabling.
  • Durable housing for 24/7 environments like signage and control rooms.
SKU / Code: 70438EU  |  Type: Receiver only  |  Category: HDMI KVM Extenders

Data sheet

Model
CM291
Color
Space grey
Brand
UGREEN

Specific References

MPN
70438EU
